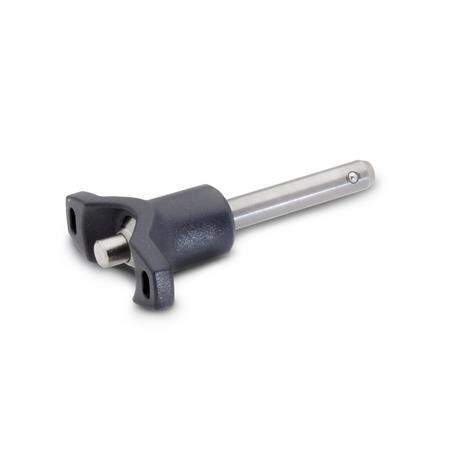

Ball lock pin with KU-T handle
GN 113.7-25-130 stainless steelNI - Stainless steel
Item-no.: 1475825Supplier number: 113.7-25-130customs tariff number: 73182900EAN: 4045525577749
Quantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Ball lock pins GN 113.7 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again. By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again. The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).

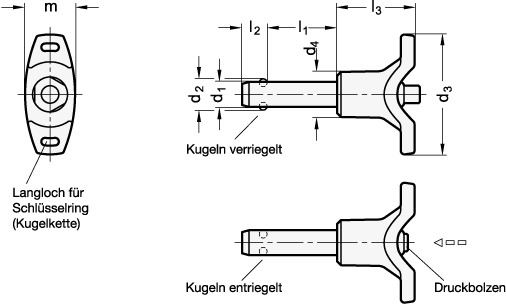

Attributes
Bolt diameter d1
25
Clamping length l1
130
L2
22
Material
NI - Stainless steel
Mounting hole
25
RoHS
Ja
Weight
0.709 kg
d2
30.8
d3
80
d4
34
l3
46.5
m
38
