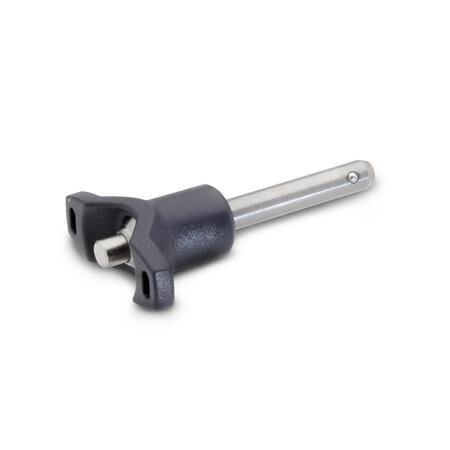

Ball lock pin with KU-T handle
GN 113.7-5-10 stainless steelNI - Stainless steel
Item-no.: 1187198Supplier number: 113.7-5-10EAN: 4045525745834
Quantity:
1 PiecePackable
Item available in 96 variants:
Price and stock visible after login
Description
Ball lock pins GN 113.7 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again. By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again. The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
Attributes
Bolt diameter d1
5
Clamping length l1
10
L2
6
Material
NI - Stainless steel
Mounting hole
5
RoHS
Ja
Weight
0.014 kg
d2
5.5
d3
40
d4
13.5
l3
25
m
15.5
