Clutch kit
GN 000.4-2-K14ST - Stahl
Item-no.: 1186778Supplier number: 000.4-2-K14customs tariff number: 84836080EAN: 4045525000261
Quantity:
1 Set
=
1 PiecePackable
Price and stock visible after login
Description
The PTFE coated surfaces of the coupling attachments GN 000.4 provide minimal friction between bearing surfaces even when lubrication is being neglected. An oil hole is provided which in the completely assembled safety handwheel connects with the handwheel hub. The coupling attachment is axially secured in the handwheel hub by a clamp nut.

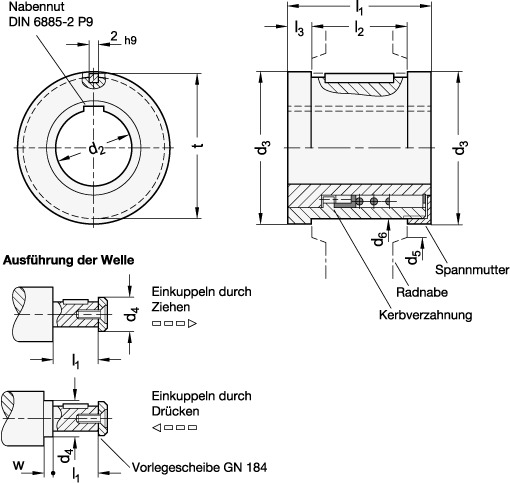

Attributes
Borehole d2
K 14
L1
32.5
Material
ST - Steel
Nominal size
2
RoHS
Ja
Size no.
2
Weight
0.123 kg
d3
32
d4 max.
21
d4max.
21
d5 Mindest-Ø der Radnabe
33
d5 Minimum Ø of the wheel hub
33
d6 Aufnahme-bohrung derRadnabeH7
29
d6 Aufnahmebohrung der Radnabe H7
29
l3
6
t
30
w min.
4
