Clutch kit
GN 000.4-3-K20ST - Stahl
Item-no.: 1186781Supplier number: 000.4-3-K20customs tariff number: 84836080EAN: 4045525000391
Quantity:
1 Set
=
1 PiecePackable
Price and stock visible after login
Description
The PTFE coated surfaces of the coupling attachments GN 000.4 provide minimal friction between bearing surfaces even when lubrication is being neglected. An oil hole is provided which in the completely assembled safety handwheel connects with the handwheel hub. The coupling attachment is axially secured in the handwheel hub by a clamp nut.

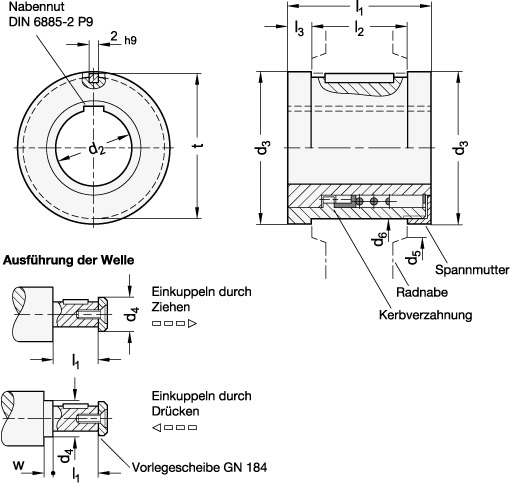

Attributes
Borehole d2
K 20
L1
36.5
Material
ST - Steel
Nominal size
3
RoHS
Ja
Size no.
3
Weight
0.173 kg
d3
38
d4 max.
26
d4max.
26
d5 Mindest-Ø der Radnabe
39
d5 Minimum Ø of the wheel hub
39
d6 Aufnahme-bohrung derRadnabeH7
35
d6 Aufnahmebohrung der Radnabe H7
35
l3
6
t
36
w min.
4
