Description

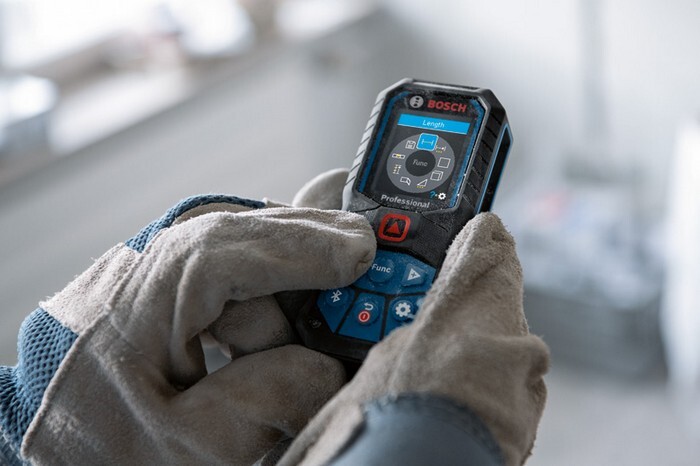

Laser Measure GLM 50-27 C, The laser measure GLM 50-27 C Professional offers a highly durable design that defies rough conditions while enabling fast documentation and ease of use. Perfect for demanding jobsites, its IP65 protection-certified design features a shock-absorbing housing and resists 1.5-metre drops even on hard concrete. Thanks to quick data transfer via Bluetooth® connectivity and Bosch’s MeasureOn App, documentation of measuring results has never been easier. Intuitive handling is ensured by its smart user interface with many helpful features such as a high-end colour display and a handy help function. Ideal for documentation, calculating material needs, room and wall areas, and placing plus fitting elements, it is the unbeatable choice for architects, electricians, and many other professions. It comes with increased battery runtime (compared to the predecessor GLM 50 C Professional) and both sound and vibration feedback to verify success of measurements. Protective Bag, Carrying Strap, 2 x 1.5 V LR6 battery (AA)
Attributes
Automatic switch-off
5 min
Datenübertragung
Bluetooth™ 4.2 Low Energy
Dust and splash protection
IP 65
Indirect height measurement
ja
Indirect length measurement
ja
Integrated inclination measurement
ja
Integrierte Zieloptik
nein
Laser class
2
Laser colour
red
Laser diode
635 nm, < 1 mW
Measuring accuracy (typical)
± 0.2°* (* plus application-dependent deviation)
Measuring accuracy, typ.
± 1.5 mm* (* plus application-dependent deviation)
Measuring range
0.05 - 50.00 m
Measuring range inclination measurement
0 - 360° (4 x 90°)
Measuring time, max.
4 s
Measuring time, typ.
< 0.5 s
Messbereich, bis zu
50,00 m
Messbereich, von
0,05 m
Min/Max measurement
ja
Number of memory values
30
Power supply
2 x 1.5 V LR6 (AA)
Shock protection
up to 1.5 m
Timerfunktion
nein
Tripod thread
1/4"
Units of measurement
m/cm/mm/Ft/Inch/Ft-Inch
Wall surface function
ja
Weight, approx.
0.2 kg
