Luftabnahme Serie Syntesi

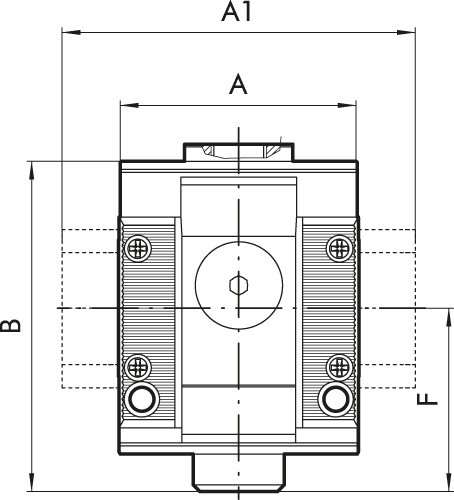

Air take-off 4-way »SYNTESI«, size2, G 3/8, outlets 1 x G 3/8, 3 x G 1/4, p1 = max. 13 bar, T = -10 … 50 °C. Air take-off for mounting between two »SYNTESI« modules. The 2-way version, made of nickel-plated brass, has two threaded ports, one facing upwards and one downwards. In the 4-way version, made of technopolymer, there is a threaded connection on each side. Thus, a total of four air outlets are available. The air take-off can also be used for air supply in order to achieve a setup with flow in both directions. ATEX version on request!
