Ganter

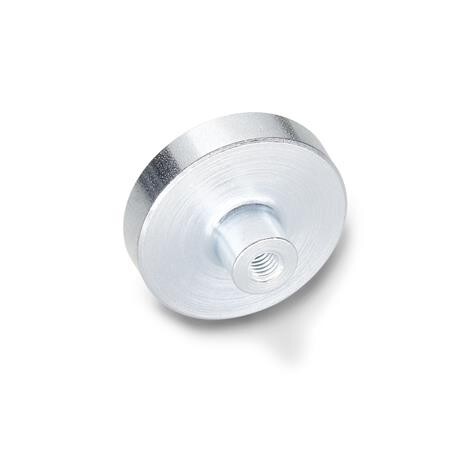

Magnetic flat gripper 40N

GN 50.2-HF-25-7-M4 Hard ferrite B=100degrees
Item-no.: 1021237customs tariff number: 85051190EAN: 4045525663534

PU (PU NW): 10 PieceQuantity: ​​ 1 PiecePackable
Item available in 41 variants:
Immediately Available

Description
Retaining magnets GN 50.2 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
Attributes
Diameter d
25
Height h (HF)
7
L
8
Nominal holding forces in NHF
40
RoHS
Ja
Screw thread d2 (HF)
M 4
Solenoid material
HF - Hard ferrite
Weight
0.020 kg
d3
8
t
7
