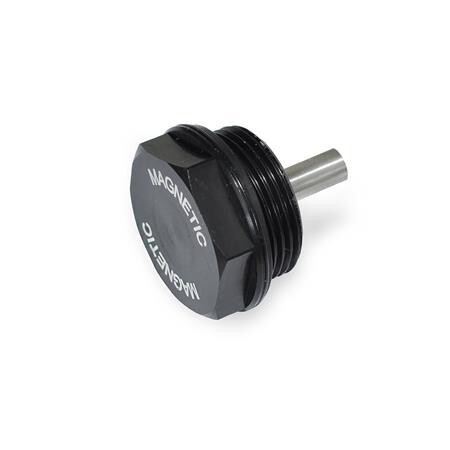

Magnetic plugs
GN 738.1-19-M14X1,5-ES blackAL - Aluminium
Item-no.: 1352777Supplier number: 738.1-19-M14X1,5-EScustoms tariff number: 83099090EAN: 4045525121942
Quantity:
1 PiecePackable
Item available in 32 variants:
Price and stock visible after login
Description
Magnetic plugs GN 738.1 attract iron particles which might be suspended in the liquid. To avoid breakage or de-magnetising, round rod magnets are fitted with a plastic distance and protection tube. This latter tube has to be removed prior to installing the plug. The sealing ring is retained in a radial undercut in the mating face which prevents it from dropping off and at the same time it cannot extrude under pressure.

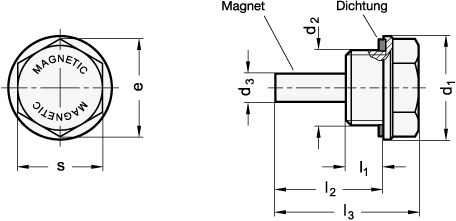

Attributes
Fine thread d2
M 14 x 1,5
L1
8
L2
23
Material
AL - Aluminium
Outer diameter d1
19
RoHS
Ja
Surface
ES - anodised, black
Weight
0.018 kg
d3
6
e
17.3
e ≈
17.3
l3
30.5
s
15
