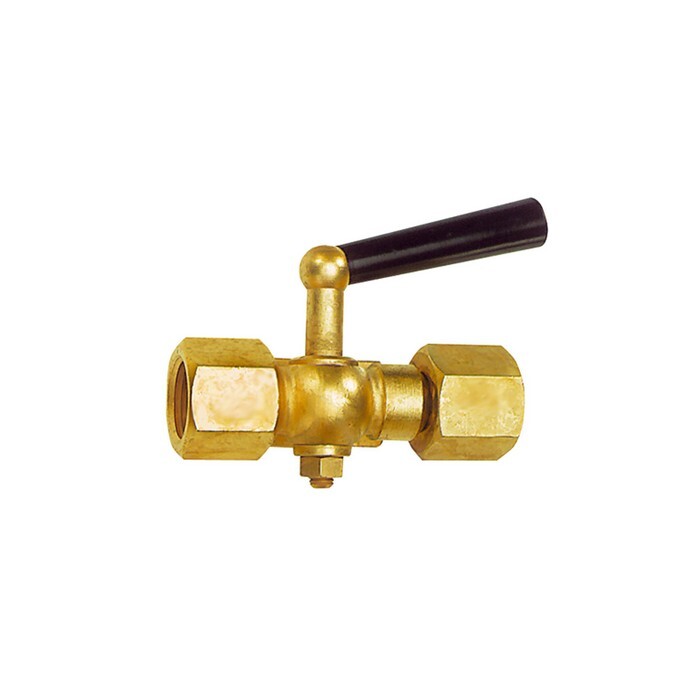

Stopcock for pressure gauge
IG 1/2", PN 25 bar, SW27 Socket/rotatable socket, brassItem-no.: 1241353Supplier number: 9012EAN: 4047322122818
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
Block valve pressure gauge, Bushing - rotating bushing, made of bright brass, G 1/2, PN 25 bar, AF 27, max. 50 °C. It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe. When the lever is set to the »blow out« position, the medium is discharged into the atmosphere. Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.
Attributes
Application range
For all pressure gauges with flat sealing ring to DIN 16258
Hand lever
Plastic
Housing
Brass bright
PN
25 bar
Riegler article number
102652
SW
27 mm
Screw thread
G 1/2
Temperature range max.
50 °C
Version
Socket / swivelling socket
