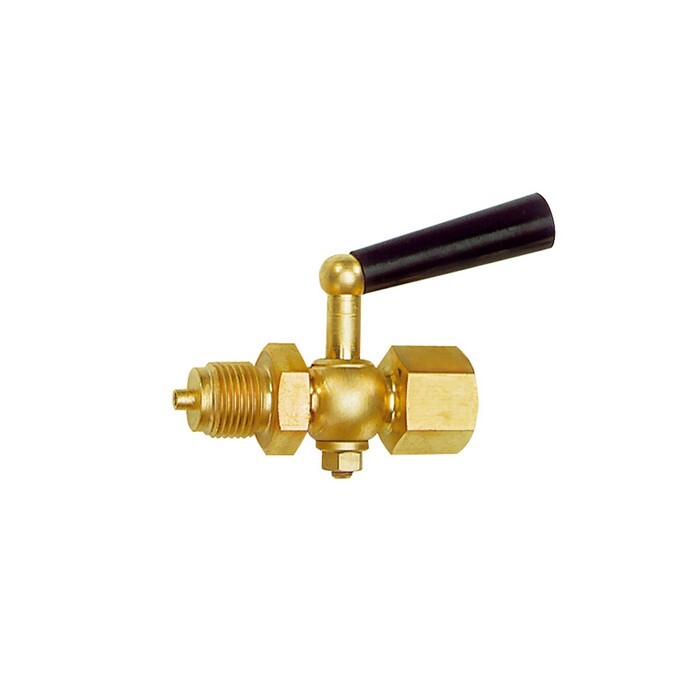

Stopcock for pressure gauge
IG 1/2", PN 25 bar, SW27, test flange Socket/spigot, brassItem-no.: 1241352Supplier number: 9010/60EAN: 4047322122801
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description
Block valve pressure gauge, Bushing - taps, made of bright brass, G 1/2, PN 25 bar, AF 27, max. 50 °C, Test flange 60x25x10. It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe. When the lever is set to the »blow out« position, the medium is discharged into the atmosphere. Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.
Attributes
Application range
For all pressure gauges with flat sealing ring to DIN 16258
Gewinde 1
G 1/2 AG
Gewinde 2
G 1/2 IG
Hand lever
Plastic
Housing
Brass bright
PN
25 bar
Riegler article number
102651
SW
27 mm
Screw thread
G 1/2
Temperature range max.
50 °C
Test flange
60x25x10
Version
Socket / spigot, with test flange 60x25x10
