Ruko

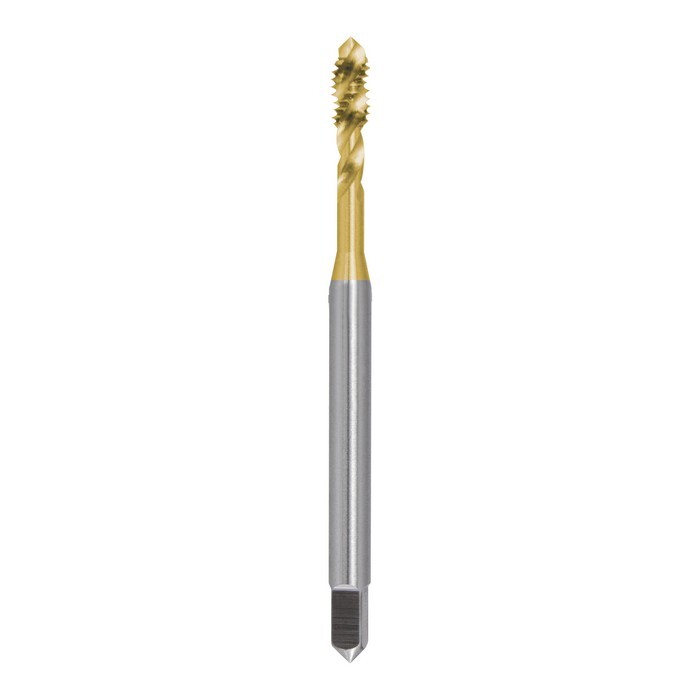

Machine tap DIN 371

M 3 x 0.5 mm HSS-TiN 35° Ruko 234030T
HSS
Item-no.: 1015831Supplier number: 234030TEAN: 4007140097453

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
The machine tap consists of heavy-duty high-speed steel with a titanium nitride coating. For universal use on a wide range of materials due to layer of hard material! For through threads and bottoming threads in unalloyed and alloyed steels up to a strength of 900 N/mm², stainless steel. The thread is cut in one operation. Note: cutting speeds from 10 m/min. By the TiN wear-resistant coating, the surface hardness increases to about 2500 HV. Titanium nitride is a chemical compound of the two elements, titanium and nitrogen. TiN is a metallic hard material with a typical golden yellow colour. Advantages: Increased hardness, low friction coefficient, more service life. Cooling is not necessary, but recommended.
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Attributes
Coat
TiN
Core hole diameter
2,5 mm
Cutting direction
right-hand cutting
DIN
371
Flank angle
60°
Form
Form C / approx. 2-3 courses
Length (battery)
56 mm
Material
HSS
Nominal thread size M
M 3
Series
RUKO043234T
Shaft
Square shank
Shaft diameter
3,50 mm mm
Spiral length
11 mm
Thread pitch
0,5 mm
Tolerance
ISO 2 6H
