Description

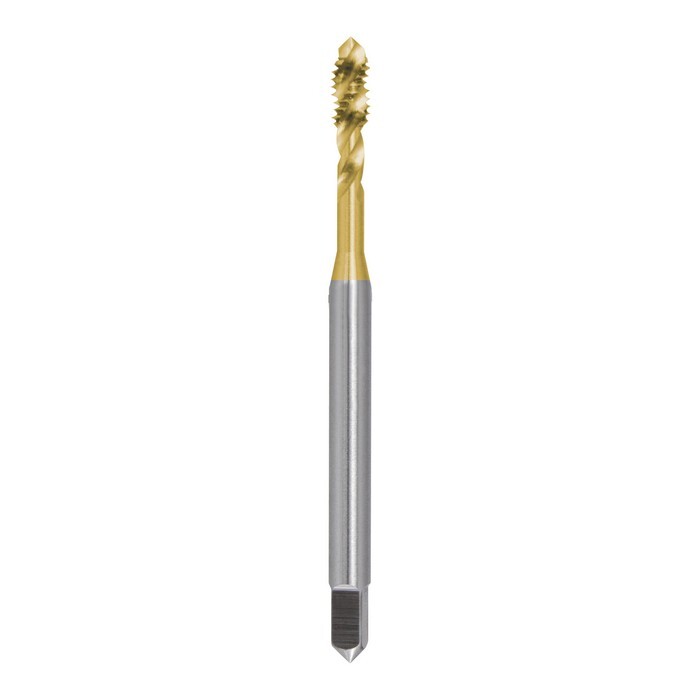

The machine tap consists of heavy-duty high-speed steel with a titanium nitride coating. For universal use on a wide range of materials due to layer of hard material! For through threads and bottoming threads in unalloyed and alloyed steels up to a strength of 900 N/mm², stainless steel. The thread is cut in one operation. Note: cutting speeds from 10 m/min. By the TiN wear-resistant coating, the surface hardness increases to about 2500 HV. Titanium nitride is a chemical compound of the two elements, titanium and nitrogen. TiN is a metallic hard material with a typical golden yellow colour. Advantages: Increased hardness, low friction coefficient, more service life. Cooling is not necessary, but recommended.











Attributes
Coat
TiN
Core hole diameter
5 mm
Cutting direction
right-hand cutting
DIN
371
Flank angle
60°
Form
Form C / approx. 2-3 courses
Length (battery)
80 mm
Material
HSS
Nominal thread size M
M 6
Series
RUKO043234T
Shaft
Square shank
Shaft diameter
6,00 mm mm
Spiral length
19 mm
Thread pitch
1 mm
Tolerance
ISO 2 6H
