Description

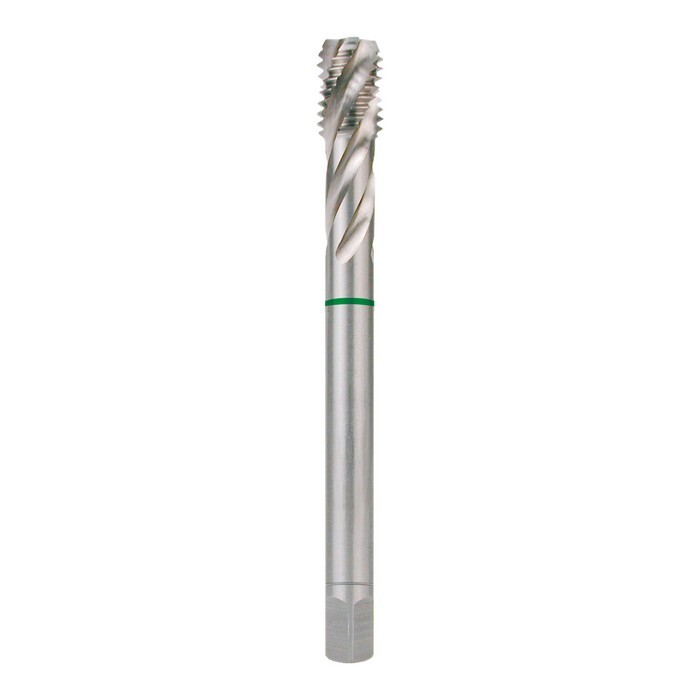

The machine tap consists of cobalt alloyed heavy-duty high-speed steel. Its high heat resistance means a longer tool life. For through threads and bottoming threads in unalloyed and alloyed steels up to a strength of 1000 N/mm², malleable cast iron and non-ferrous metals. The thread is cut in one operation. Like high speed steel with cobalt alloy. This heat-resistant material is used for processing materials with high strength and in long cutting channels with correspondingly strong heating. The cobalt content of 5% provides a higher heat resistance and higher stressing capacity.











Attributes
Coat
Uncoated
Core hole diameter
4,2 mm
Cutting direction
right-hand cutting
DIN
DIN 376
Flank angle
60°
Form
Form C / 35° RSP for blind hole thread
Length (battery)
70 mm
Material
HSSE-Co 5
Nominal thread size M
M 5
Series
RUKO043233E
Shaft
Square shank
Shaft diameter
3,50 mm mm
Spiral length
16 mm
Thread pitch
0,8 mm
Tolerance
ISO 2 6H
