Völkel

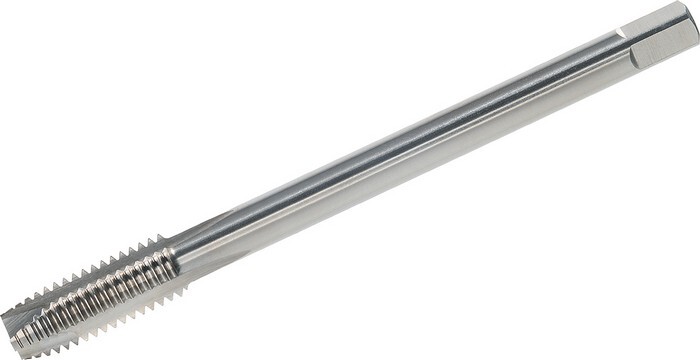

Maschinengewindebohrer

M 30x3.5 LH, DIN 376/B HSSE Völkel
Item-no.: 1755557Supplier number: 34578EAN: 4022835345787

Quantity: ​​ 1 PiecePackable
Item available in 337 variants:
Short-term Sourcing

Description
Für den allgemeinen Einsatz in gut zerspanbaren Werkstoffen bis 900N/mm², unlegierten und niedriglegierten Stählen.
Attributes
Anschnitt Form
B
Borehole
DULO
Core hole diameter
26,5 mm
L1
180 mm
L2
45 mm
Material
HSSE
Nominal size
30 mm
Norm Baumaße
DIN 376
Nutenform
N
RH/LH
LH
Steigung P
3.5 mm
Thread standard
DIN 13
Thread type
M
Tolerance
ISO2 (6H)
Vierkant k
18
d2
22
