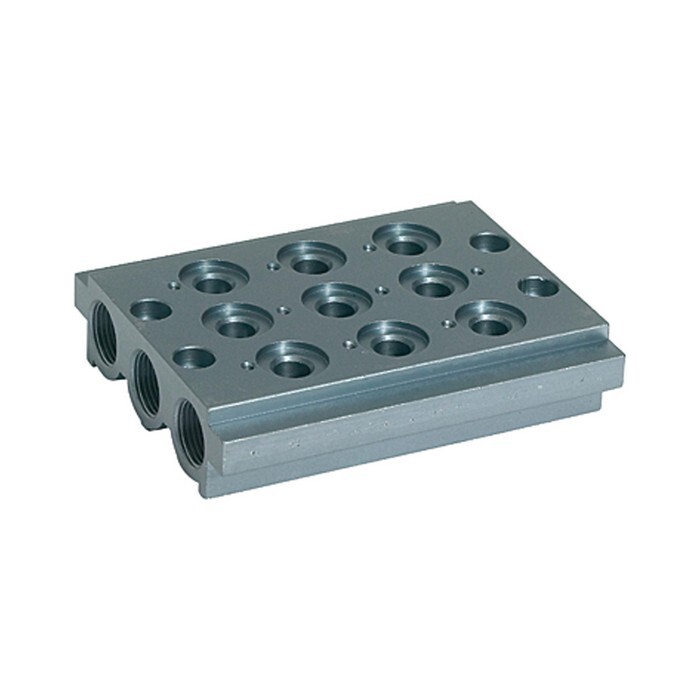

1109736 #1
Riegler

Mehrfach-Grundplatte

IG 1/8" mit 3 Ventilpositionen für Wegeventil 514,515,516,517
Item-no.: 1109736Supplier number: 520.03-18EAN: 4047322098335
Quantity: ​​ 1 PiecePackable​
Item available in 20 variants:
Short-term Sourcing
Description
Multi-base plate for the way valves, with 3 valve positions, for valves connection G 1/8, exhaust/supply connection G 1/4. Light alloy manifold bases for 2 to 10 valve positions. Not for 5/2-way spool valves - Robust type and 3A, 4A, 3V, 4V type.
Attributes
Description
Base plate for 3 valve positions
For valve connection
G 1/8
Material
Aluminium
Riegler article number
106623
Version
with 9 screws and 9 seals
Downloads
Technische Dokumentation-dbyhx_106623.pdf
616.16 kB
