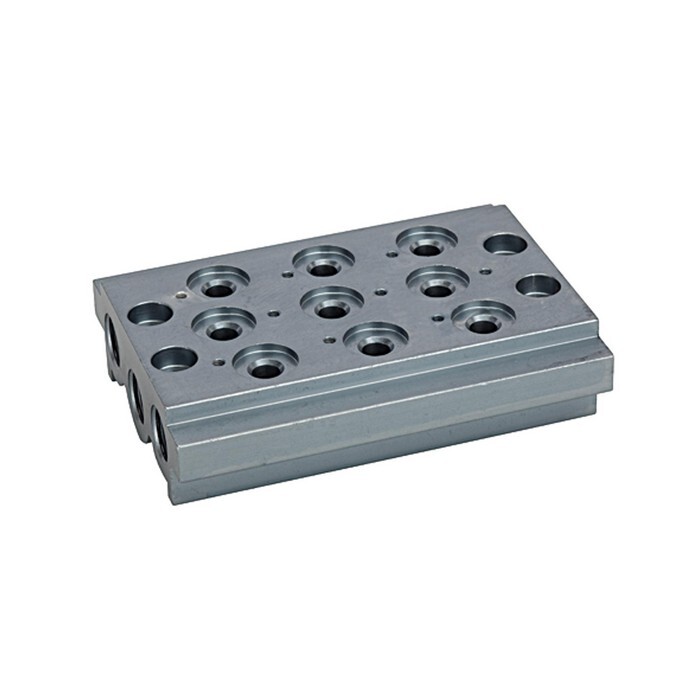

1170091 #1
Riegler

Mehrfach-Grundplatte

IG 1/8" mit 4 Ventilpositionen für Wegeventil 514,515,516,517
Item-no.: 1170091Supplier number: 520.04-18EAN: 4047322098366
Quantity: ​​ 1 PiecePackable​
Item available in 20 variants:
Short-term Sourcing
Description
Multi-base plate for the way valves, with 4 valve positions, for valves connection G 1/8, exhaust/supply connection G 1/4. Light alloy manifold bases for 2 to 10 valve positions. Not for 5/2-way spool valves - Robust type and 3A, 4A, 3V, 4V type.
Attributes
Ausführung
mit 12 Schrauben und 12 Dichtungen
Description
Base plate for 4 valve positions
For valve connection
G 1/8
Material
Aluminium
Riegler article number
106624
Downloads
Technische Dokumentation-dbyhx_106624.pdf
622.9 kB
