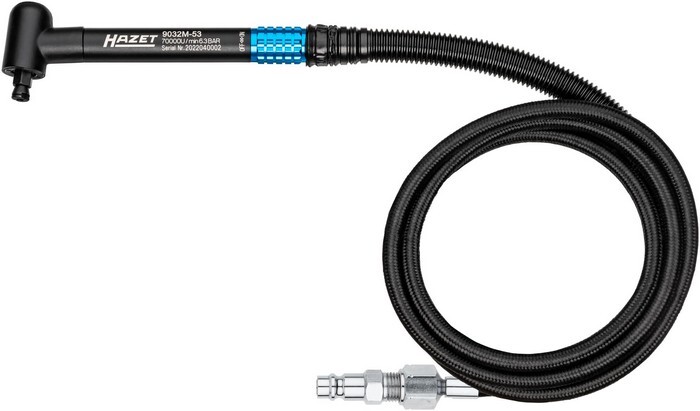

Micro rod grinder angled
Hose Ø 10 mm, L=1500 mm Hazet 9032M-53Item-no.: 1636500Supplier number: 9032M-53customs tariff number: 84671190EAN: 4000896246205
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Application: - Precise processing of workpieces even in areas with very restricted access · Long service life thanks to high-quality Kevlar blades · Head 110° angled · Air connection inlet: Inside thread 12.91 mm (1/4″) · Coupler plug: Nominal size 7.2 (included) · Hose diameter (recommended): 10 mm · Working pressure (bar): 6.3 · Sound power level: 78.1 db(A) Lp W · Vibration acceleration: 0.37 m/s2 · Collet chuck: 3 mm · Power in watts: 186.4 Watt · Hose length: 1.5 m · Dimensions / length: 140 mm x 44.5 mm · Net weight: 0.23 kg · Sound pressure level: 77.7 dB(A) Lp A · Revolutions per minute: 70000 · Air requirement: 150 l/min (2.5 l/sec).
Attributes
Air connection inlet
Internal thread 12.91 mm (1/4″)
Air requirement [l/min]
150 l/min
Air requirement [l/sec]
2.5 l/sec
Chuck
3 mm
Coupling plug
Nominal diameter 7.2 (included)
Dimensions
140 mm x 44.5 mm
Dimensions/length
140 x 44.5 mm
Hazardous substance labelling
false
Hose diameter (recommended)
10 mm
Length (battery)
140 mm
Net weight
230 g
Net weight (g)
230 g
Net weight (kg)
0.23 kg
Operating pressure
6.3 bar
Operating pressure (bar)
6.3 bar
Power PS
0.253 PS
Power Watt
186.4 Watt
Revolutions/minute (maximum)
70000 upm
Series
auya_9032
Sound power level (at operating pressure)
78.1 db(A) Lp W
Sound pressure level (at operating pressure)
77.7 dB(A) Lp A
Vibration acceleration
0.37 m/s2
