Microfilter Futura series
IG 3/4", 1.5-16 bar, 3500l/min BG3 HA Protective cage, PC containerItem-no.: 1241610Supplier number: FU 6170customs tariff number: 84213925EAN: 4047322245869
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description

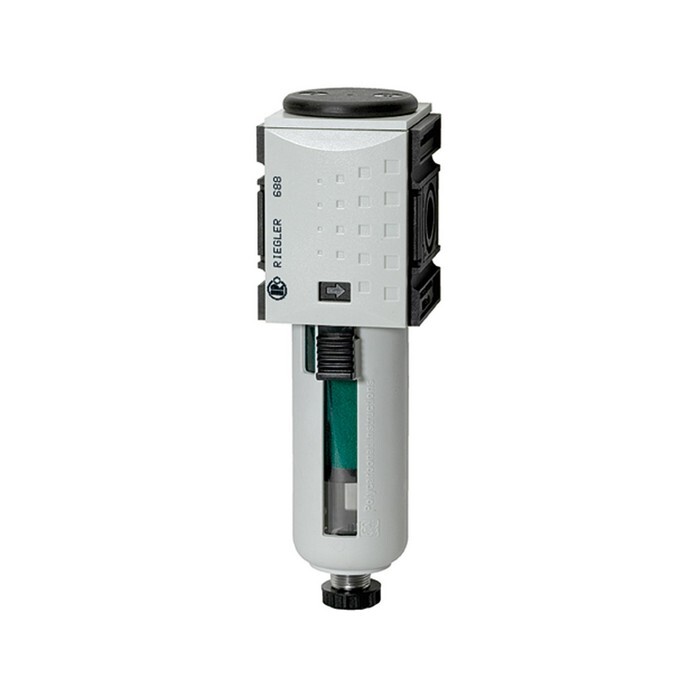

Microfilter »FUTURA«, PC container and protective cage, 0.01 µm, Size 4, G 3/4, 1.5-16 bar, Temp. -10 °C to 50 °C, Semi-automatic. Micro-filters in modern design for compliance with strict compressed air purity requirements. Micro-filters are used to separate solid oil, water and solid impurities as small as 0.01 µm from compressed air and gases.
Attributes

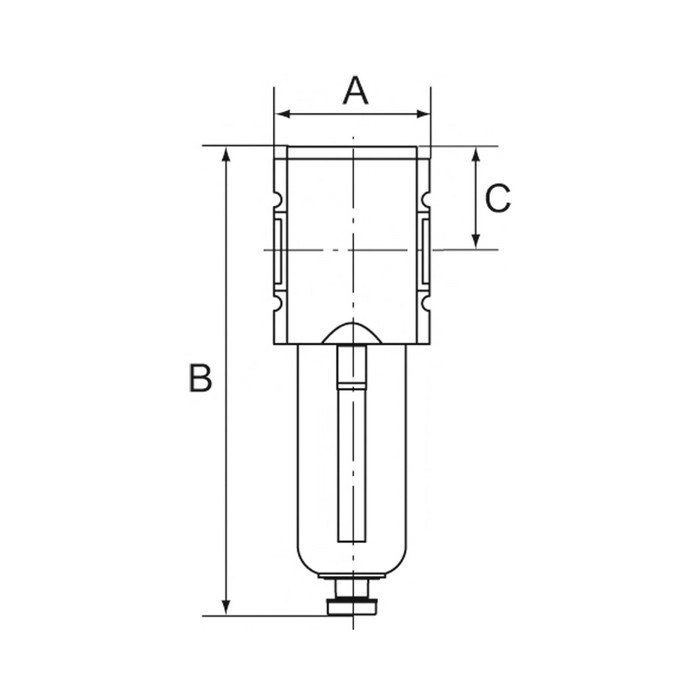

A
85,0 mm
BG
4
Condensate drain
Semi-automatic
Connection thread
Material zinc die-cast
Container
Polycarbonate container with protective cage
Durchflusswertmessung
bei P<sub>2</sub> = 6 bar und Druckabfall Δ<sub>p</sub> = 0,1 bar
Dust separation
> 0,01 µm 99,999 %
Filter element
Borosilicate glass fibre
Filter fineness
0,01 µm
Flow rate
1500 l/min
Housing
PA66 GF60
Inlet pressure max.
16 bar
Inlet pressure min.
1,5 bar
Medium
Compressed air, neutral gases
Product range
FUTURA
Residual oil content
< 0,01 mg/m³
Riegler article number
100179
Screw thread
G 3/4
Size
4
Temperature range max.
50 °C
Temperature range min.
-10 °C
b
252,0 mm
c
63,0 mm
