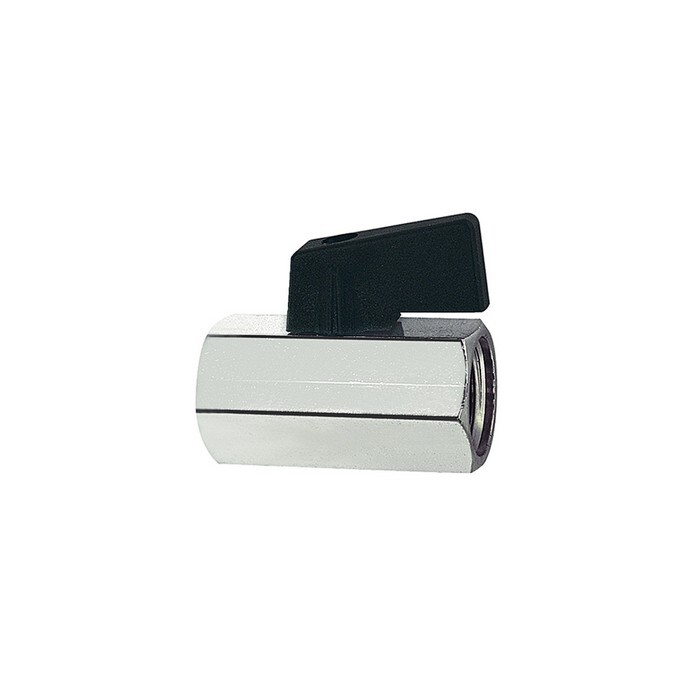

Mini ball valve nickel-plated brass
IG/IG 1/4", BL 38 mm, max 10 bar Plastic wing handle smooth surfaceItem-no.: 1116329Supplier number: 375.01EAN: 4047322081078
Quantity:
1 PiecePackable
Item available in 13 variants:
Price and stock visible after login
Description
Mini ball valve, Smooth surface, nickel-plated brass, Medium temp.-10 °C to 70 °C (short term 90 °C), G 1/4 IT, DN8, PN max.10 bar.
Attributes
A
22,0 mm
Ambient temperature max.
70 °C
Ambient temperature min.
-10 °C
Ball
Nickel-plated brass
Ball seal
PTFE
DN
8
Housing
Nickel-plated brass
L
39,0 mm
Lever
Plastic
Max. operating pressure
10 bar
Medium temperature
-10 to +70 °C
Medium temperature max.
70 °C
Medium temperature min.
-10 °C
Operating pressure
max. 10 bar
Rotary handle
Plastic
SW
20 mm
Screw thread
G 1/4 IG
Screw thread mm
13,16 mm
Spindle seal
NBR
Temperature range
-10 to +70 °C
Thread material
Nickel-plated brass
Version
Internal/internal thread
b
27,2 mm
