Mini-Kugelhahn Serie valve line
G 1/2 IG, DN 15, PN max. 10 bar Messing vernickeltItem-no.: 1734012Supplier number: 373.03-E-1EAN: 4047322749664
Quantity:
1 PiecePackable
Price and stock visible after login
Description

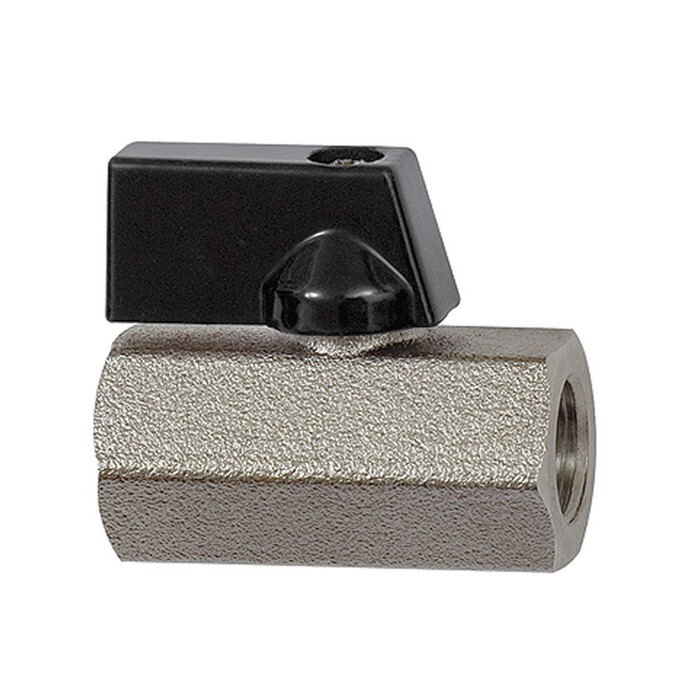

Mini ball valve »valve line«, nickel-plated brass, rotating handle, medium/ambient temp. -20 °C to 90 °C, G 1/2 IT, PN max. 10 bar.
Attributes
Ambient temperature max.
90 °C
Ambient temperature min.
-20 °C
Ball
Nickel-plated brass
Ball seal
PTFE
DN
15
Housing
Nickel-plated brass

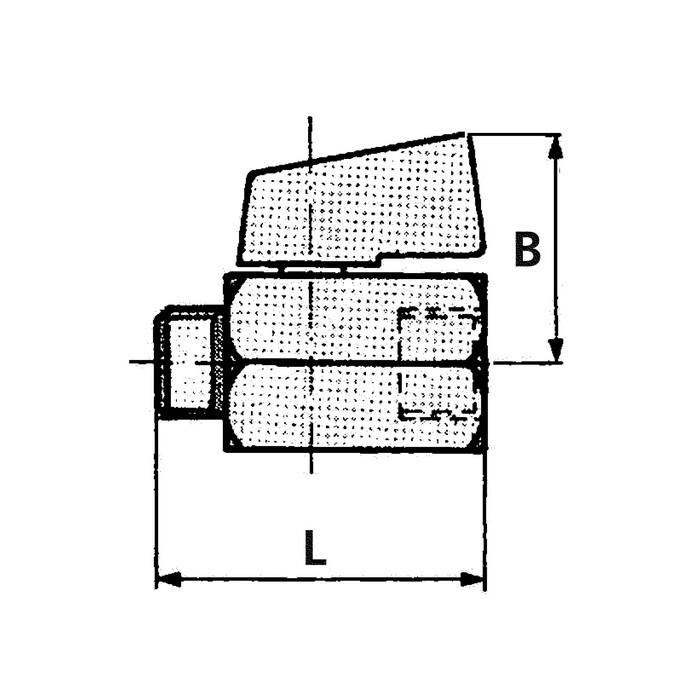

L
46,0 mm
Max. operating pressure
10 bar
Medium temperature max.
90 °C
Medium temperature min.
-20 °C
Rotary handle
Aluminium
SW
25 mm
Screw thread
G 1/2 IG
Spindle seal
EPDM
Thread material
Brass bright
b
30,0 mm
