Description

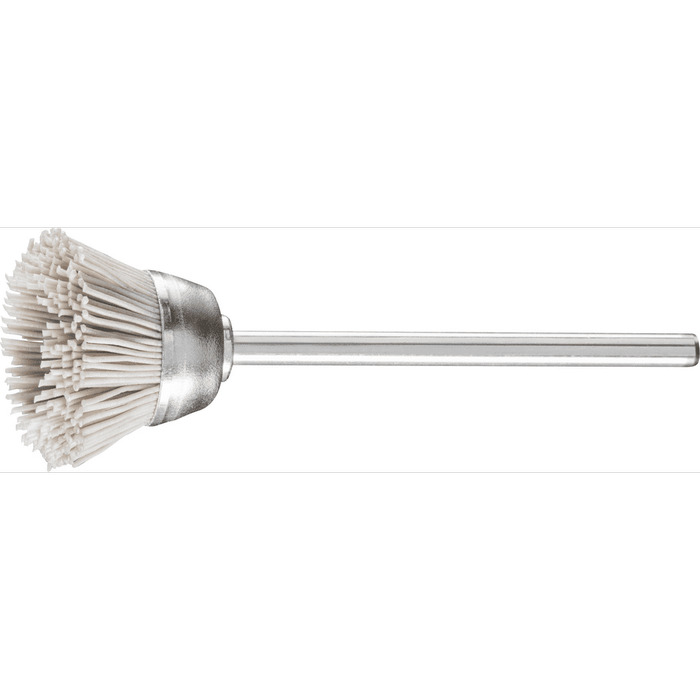

Suitable for light brushing such as deburring, cleaning and polishing. Particularly suitable for brushing on small surfaces due to face-down use with the entire brush face applied to the workpiece. PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders. Brushes with aluminium oxide (AO) are less sharp-edged and aggressive compared with SiC. They are primarily suitable for polishing and smoothing finishes on soft metals. Plastic filament withstands temperatures up to 220 °C.
Attributes
Bristle material
Aluminium oxide (AO)
Grit size
600
Holder system
Shank
Length, total
45 mm
Length, trim
6 mm
Max. RPM
18000 RPM
RPM, max.
18000 RPM
RPM, opt. from
1200 RPM
RPM, opt. to
5000 RPM
Series
byly_TBU_43209
Width metric
3 mm
Ø Cup
10 mm
Ø External metric
18 mm
Ø Shaft metric
2.34 mm
Ø Trimming material
0.3 mm
