Monthly angle
GN 970-ALM-30-45-60-A AluminiumALM - Aluminium
Item-no.: 1353832Supplier number: 970-ALM-30-45-60-AEAN: 4045525373853
Quantity:
1 PiecePackable
Item available in 1 variants:
Price and stock visible after login
Description

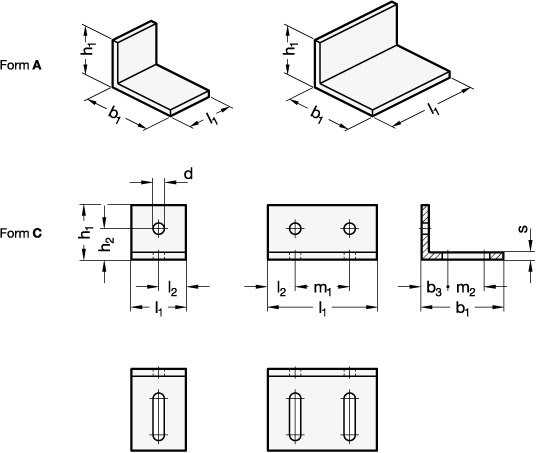

Installation brackets GN 970 are used universally for right-angle connecting and fastening of, e.g. base plates or covers. Type A allows for the use of drilling templates specific to the application as well as fastening by welding. Type C installation brackets have one or two combinations of a hole and an elongated hole depending on the length l1.
Attributes
Angle form
A - without holes
Groove width
30
Length angle l1
60
Length angle l2
15
Material
ALM - Aluminium
RoHS
Ja
Weight
0.044 kg
Width h2
18
b1
45
d
6.2
h1
30
s
4
