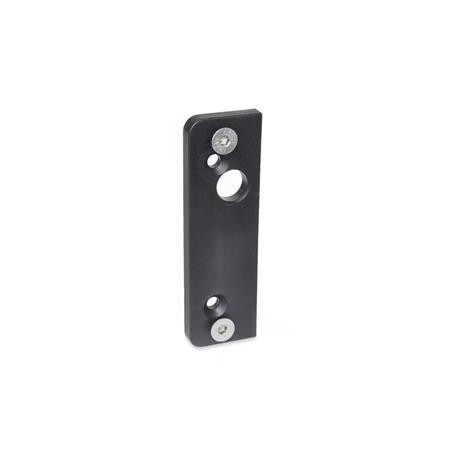

Mounting plate
GN 239.8-110-14 Elesa 51901PA - plastic, polyamide
Item-no.: 1344490Supplier number: 239.8-110-14customs tariff number: 85369095EAN: 4045525084667
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description
Mounting plates GN 239.8 allow the installation of hinges GN 239.6 ... and 239.7-60-110 if the required spacing of the installation bore holes differs from the spacing of the hinge. Their use is necessary if the unit is to be mounted on profile systems. The required quantity of the mounting plates must be ordered depending on the desired installation spacing m3. Two nuts and the appropriate countersunk screws are included.
Attributes
For GN 239.7 (without switch)
14
Length m3
14
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.041 kg
Width l1
110
a Profile cross-section
30
a Profilquerschnitt
30
b
28
d For screw
M 6
d für Schraube
M 6
l2 For GN 239.6(with switch)
12
l2 für GN 239.6(mit Schalter)
12
m1
19
m2
91
m4
73
