Montageplatte für Schlitten
GN 900.4-30-41-A ohne BefestigungsbohrungenAL - Aluminium
Item-no.: 1214427Supplier number: 900.4-30-41-AEAN: 4045525511910
Quantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description
Mounting plates GN 900.4 type A are used for installing fixtures on the operator’s side. Type B is used for installing a rotary table GN 900.6. The mounting plate can be simply clamped on to the slide and no additional drilled holes are required. The small fixing plates serves as an additional fine adjustment of the mounting plate with the adjustable slide unit. All parts required to make up a set are included.

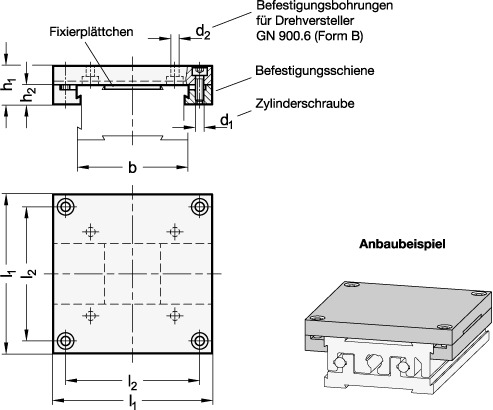

Attributes
Form
A - without fixing holes
L2
35.4
Length l1
41
Material
AL - Aluminium
RoHS
Ja
Weight
0.029 kg
Width B
30
d1 Zylinderschrauben DIN 912
M 2,5
d1 Zylinderschrauben ISO 4762
M 2,5
h1
5
h2
4.2
