Mounting kit for position indicator 955
GN 295-18-6-1Item-no.: 1344657Supplier number: 295-18-6-1EAN: 4045525126763
Quantity:
1 Set
=
1 PiecePackable
Item available in 9 variants:
Price and stock visible after login
Description
The GN 295 installation kits are needed for mounting a position indicator on linear units. The installation kits comprise an adapter shaft and a torque support including attachment screws. Order mechanical position indicators GN 953 / GN 954 / GN 955 with a counter pitch that corresponds to that of the trapezoidal threaded spindle. For position indicators GN 9053 / GN 9054, the position indicator pitch is programmed.

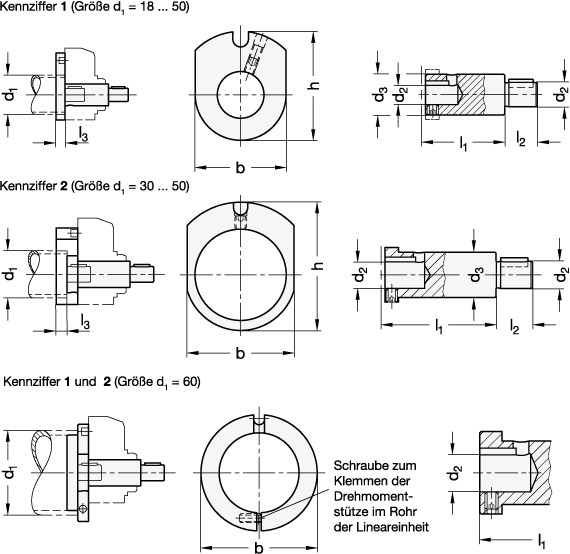

Attributes
Code number
1 - for mechanical position indicators GN 953 / GN 954 / GN 955
Connection diameter linear unit d2
6
Diameter linear unit d1
18
For position indicator
GN 955
L2
16
RoHS
Ja
Weight
0.070 kg
b
24
d3
10
h
33
l1 Kennziffer 1
28
l3
10
