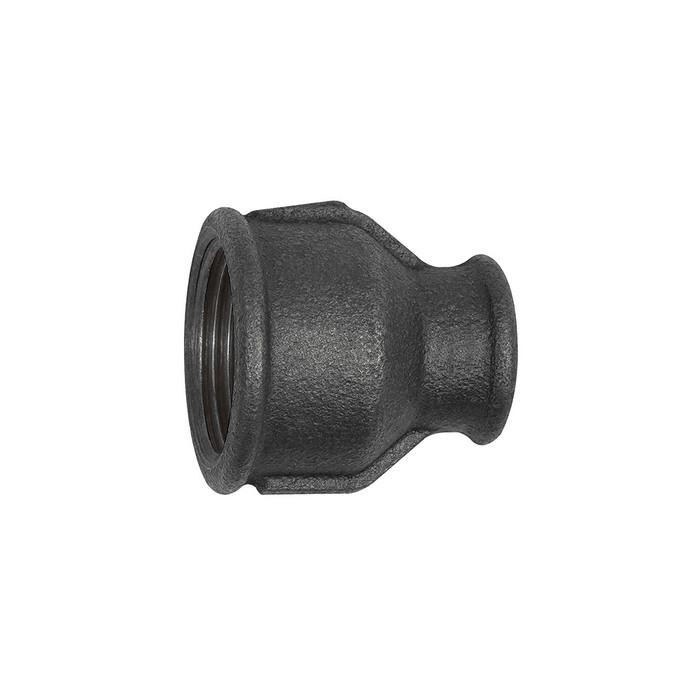

Muffe 240
Rp 2 i., Rp 1 1/4 i. Temperguss schwarzItem-no.: 1732790Supplier number: TFM 240-20114-SEAN: 4047322481571
Quantity:
1 PiecePackable
Item available in 22 variants:
Price and stock visible after login
Description
Bushing 240, reducing, IT/IT, Rp 2, Rp 1 1/4, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1. According to DIN EN 10242 (previously 2950). Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology. Working minimal temperature = -20 °C, 25 bar. Working pressure for temperature range from -20 °C to 120 °C: 25 bar. Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Attributes
Material
Black malleable cast iron B350-10 Design Symbol A
Screw thread 1
Rp 2
Screw thread 2
Rp 1 1/4
Surface
black
Temperature range max.
300 °C
Temperature range min.
-20 °C
Thread standard
according to ISO 7-1
