Muffe 240

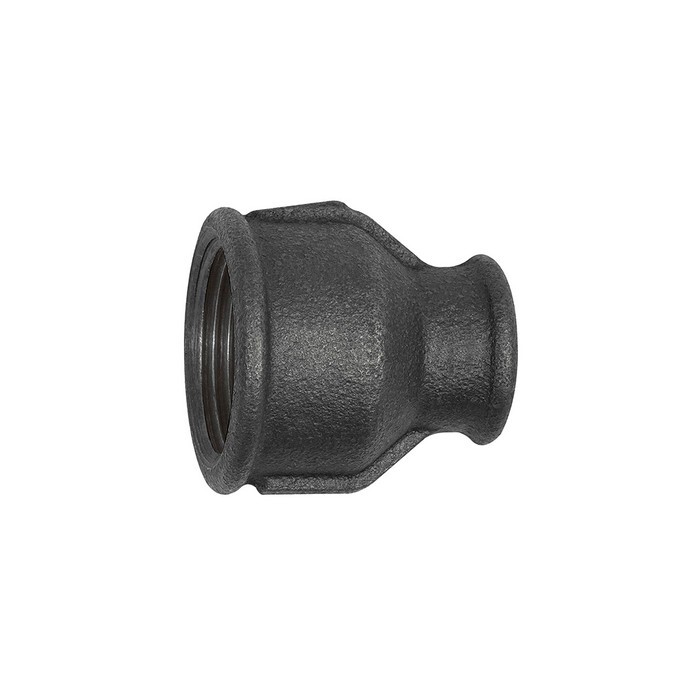

Bushing 240, reducing, IT/IT, Rp 3/8, Rp 1/4, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1. According to DIN EN 10242 (previously 2950). Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology. Working minimal temperature = -20 °C, 25 bar. Working pressure for temperature range from -20 °C to 120 °C: 25 bar. Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
