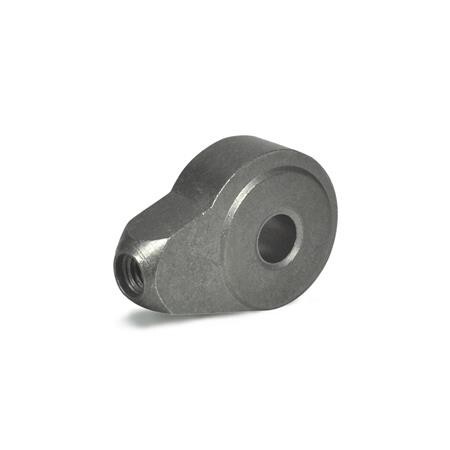

Hub with spiral eccentric
GN 919-24-B8 Sintered steelSM - Steel
Item-no.: 1076782Supplier number: 919-24-B8EAN: 4045525394827
Quantity:
1 PiecePackable
Item available in 3 variants:
Price and stock visible after login
Description
Hubs with eccentrical cam GN 919 are used for adjusting and clamping operations. As a rule these are fitted with a gear lever handle GN 310. The cam offers the advantage that the clamping force remains constant in every position of its travel. In addition the cam is self locking. Cylinder head shoulder bolts GN 732.1 can be used as bearing pins.
Attributes
Borehole d2
B 8
Diameter d
24
L
28
Length l
28
Material
SM - Steel
RoHS
Ja
Weight
0.059 kg
b1
13
b2
11
d3
M 6
d4 Handle bar
8
r1
12
r2
13.32
r3
14.64
r4
15.3
s
3.3
tmin.
9
