Nail anchor
N 6x60 Z, gvz. fischer, PU=50 STKItem-no.: 1059893Supplier number: 050355EAN: 4006209503553
PU (PU NW): 50 PiecePU (Packaging): 50 PieceQuantity:
50 PiecePackable
Price and stock visible after login
Description

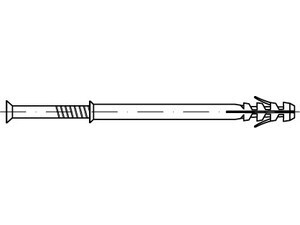

article 88503 nylon N-S zinc plated FISCHER nail plugs N-S with self-piercing screw, with Pozidriv cross recess Z - dimension: N-S 6x 60/ 30 PU=S (50 pieces)
Attributes
Colour
grey
Distance mounting
No
Dowel length
60 mm
Drill nominal diameter
6 mm
Drive
PZ2
Effective anchoring depth
30 mm
Material
Galvanised steel
Material quality
Nylon
Material screw
Galvanised steel
Max. thickness of the add-on part
30 mm
Min. anchoring depth
30 mm
Min. drill hole depth
75 mm
Min. drill hole depth for push-through installation
75 mm
Pin form
Nail screw
Pre-assembly
No
Professional / DIY
DIY
Push-through mounting
Ja
Suitable for aerated concrete
Ja
Suitable for aerated concrete
Ja
Suitable for concrete
Ja
Suitable for sand-lime brick
Ja
Suitable for solid brick
Ja
VDS approval
Ja
Version
With screw
With rim
Ja
With screw
Ja
With screw nail
Ja
fischer nail screw
4 x 64 mm
