Mist lubricator Standard series
IG 3/8", DN10, 2400l/min, BG2 with polycarbonate containerItem-no.: 1241808Supplier number: 750 Kcustoms tariff number: 84248970EAN: 4047322117005
Quantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description

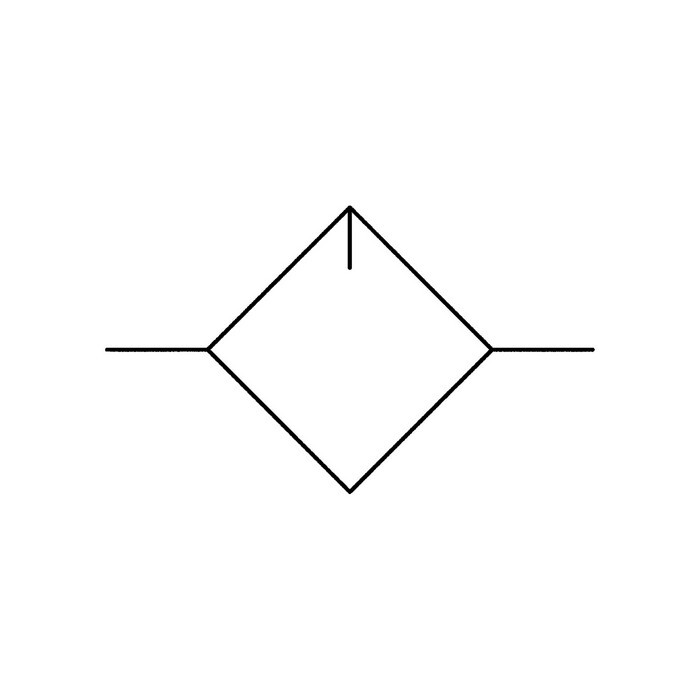

Mist oiler »Standard« with polycarbonate container, Size 2, G 3/8, Input pressure max. 16 bar, Medium / ambient temp. max. 60 °C. Proportional lubricators, oil can be filled under pressure.
Attributes
A
70,0 mm
Ambient temperature
max. +60 °C
Ambient temperature max.
60 °C
Ambient temperature min.
-10 °C
BG
2
Container
Polycarbonate container
DN
10 mm
Drip attachment
PA
Durchflusswertmessung
bei P<sub>2</sub> = 6 bar und Druckabfall Δ<sub>p</sub> = 1 bar
Flow rate
2400 l/min
Housing
Die-cast zinc, painted silver
Inlet pressure max.
16 bar
Input pressure
max. 16 bar
Medium
Druckluft, neutrale Gase
Medium temperature
max. +60 °C
Medium temperature max.
60 °C
Medium temperature min.
-10 °C
Oil type
CL 32 according to DIN 51517-ISO VG 32
Screw thread
G 3/8
Screw thread mm
15,39
Sealing material
NBR
Temperature range
max. +60 °C
c
51,0 mm
d
129,5 mm
