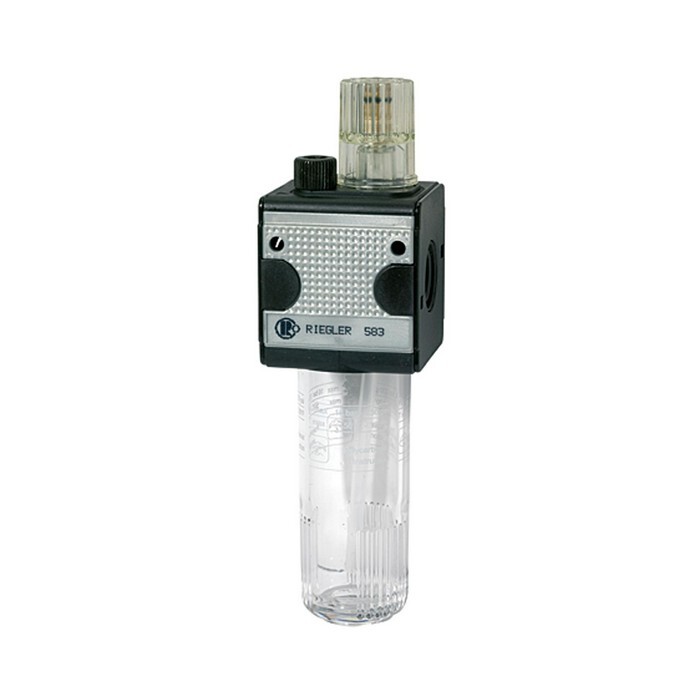

Mist lubricator multifix series
IG 1/4", DN6, 1900l/min, max 16 bar, BG1 with polycarbonate containerItem-no.: 1117078Supplier number: L 11 KEAN: 4047322155656
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description
Mist oiler »multifix« with polycarbonate container, Size 1, G 1/4, Input pressure max. 16 bar, Medium / ambient temp. max. 60 °C. Proportional lubricators, oil can be filled under pressure.
Attributes
A
47,8 mm
Ambient temperature max.
60 °C
Ambient temperature min.
-10 °C
BG
1
Container
Polycarbonate container
DN
6
Drip attachment
PA
Durchflusswertmessung
bei P<sub>1</sub> = 6 bar und Druckabfall Δ<sub>p</sub> = 1 bar
Flow rate
1900 l/min
Housing
Zinc die casting
Inlet pressure max.
16 bar
Medium
Druckluft, neutrale Gase
Medium temperature max.
60 °C
Medium temperature min.
-10 °C
Oil type
CL 32 according to DIN 51517-ISO VG 32
Product range
multifix
Riegler article number
100551
Screw thread
G 1/4
Sealing material
NBR
Series
multifix
Size
1
b
167,8 mm
c
58,0 mm
d
109,8 mm
