Weicon

Nickel assembly paste

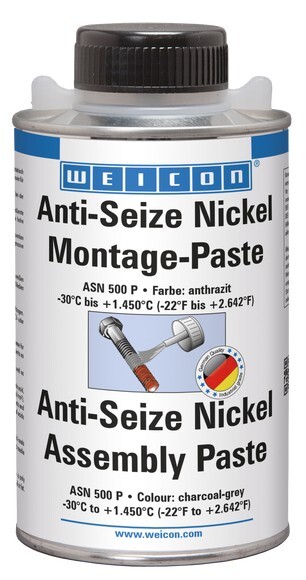

500 g tin Weicon Anti-Seize ASN 500
Item-no.: 1376979Supplier number: 10047560EAN: 4024596071806

PU (Packaging): 12 PieceQuantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
The assembly paste was developed to resist extreme conditions. It has high adhesive strength, is water-repellent and resistant to fresh, salt and hot water as well as steam. The high amount of nickel components also provides protection against corroding and corrosive solvents, which are contained in diluted hydrochloric acid, sulphur or nitric acid, among others. WEICON Anti-Seize Nickel can be applied at a large temperature range between -30 C and 1,450°C. Anti-Seize Nickel serves as corrosion protection and high-performance assembly paste for screw connections and assembly parts exposed to extremely high static and dynamic stresses as well as for slowly rotating installations in the high temperature range. The paste protects against corrosion, seizing, wear, stick-slip effects, oxidation and friction corrosion as well as electrolytic reactions, the so-called cold-welding. Anti-Seize Nickel can be used on seals, valves, screw connections, gear wheels, bearings, jets, conveyor belts, studs, tools or cylinders.
Attributes
Base
Synthetic oil
Colour
anthrazit
Compressive strength
230.0 MPa
Construction material class|DIN 4102
B2
Density of the mixture
1.3 g/cm³
Density|(+20°C) DIN 51757
1,3 g/cm³
Dielectric strength|DIN EN 60243-1 (20°C)
1,1 kV/mm
Friction coefficient head
0.11 (min. 0.10)
Friction coefficient thread
0.13 (min. 0.11)
Friction coefficient thread
0.20 (min. 0.16)
Fulling penetration|DIN ISO 2137
310 - 340 1/10 mm
Sales bundle
Tin can
Salzsprühnebeltest|DIN EN ISO 9227
> 170 h
Sulphur content|DIN 51400
<0,1 %
Temperature conductivity
0.303 mm²/s
Temperature resistance
-30 °C to 1,450 °C
Thermal capacity|DIN EN ISO 22007-4
1.493 J/(g·K)
Thermal conductivity
0.582 W/m·K
Total friction coefficient
0.15 (min. 0.13)
Total friction coefficient\n
0.11 (min. 0.10)
VKA-TEST Schweißkraft|DIN 51350
2000.0 N
VKA-TEST calotte value|DIN 51350 (1min/1000N)
0.6 mm
VKA-TEST welding load|DIN 51350
2000.0 N
Water resistance|DIN 51807
1 - 90
