Air-operated oil pump
THAP 150E SKF MaProItem-no.: 1385195Supplier number: THAP 150Ecustoms tariff number: 84122120EAN: 7316574959730
Quantity:
1 PiecePackable
Price and stock visible after login
Description

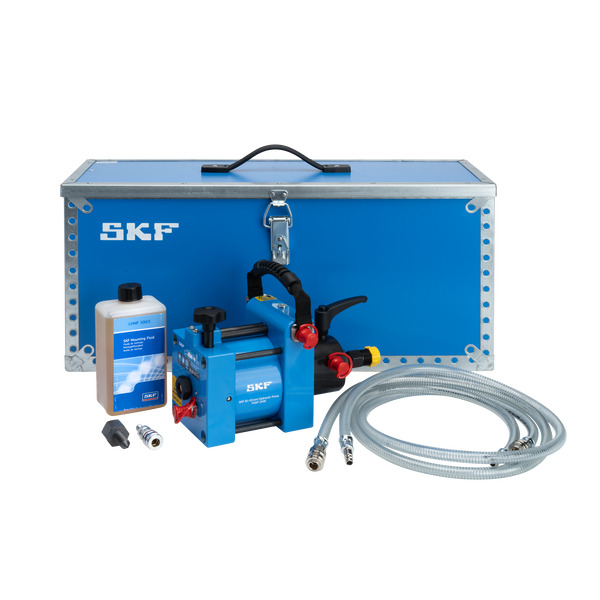

The THAP 150E air-driven hydraulic pump can be used for mounting SKF OK Coupling hydraulic chambers and for mounting and dismounting large rolling element bearings using the oil injection method. It is also suitable for similar applications for pressures up to 1500 bar (150 MPa / 21750 psi). The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismounting fluids are recommended for use with the THAP 150E.
Attributes
Air consumption
200 l/min
Air pressure
3 bar
Betriebstemperaturbereich
0-45 °C
Colour
blue, metallic grey
Druckverhältnis
1:250
Gehäusewerkstoff
Aluminium, alloyed tool steel
Inhalt
Druckluftbetriebene Pumpe 150 MPa (21 750 psi);2 Niederdruckschläuche mit Kupplungen (1,5 m);Druckluftkupplung (IG);Montageflüssigkeit (1 l);Bedienungsanleitung;Koffer
Maximaldruck
150 Mpa
Maximum pressure
1500 bar
Pressure gauge
Optional
Total weight
20.2
Volumen pro Hub
1.92 ml
Weight
11,50 kg
Ölauslassgewinde
G 3/4
Ölviskosität max.
1,500 mm²/s
