Air-operated oil pump
THAP 400E SKF MaProItem-no.: 1131383Supplier number: THAP 400Ecustoms tariff number: 84139100EAN: 7316572488454
Quantity:
1 PiecePackable
Price and stock visible after login
Description

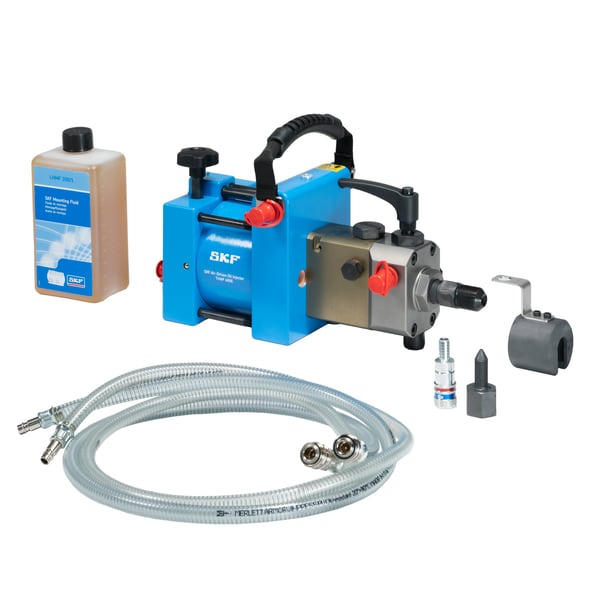

The THAP 400E air-driven oil injector can be used for mounting and dismounting SKF OK Couplings, large pressure joints such as bearings, flywheels, couplings and railway wheels. It is also suitable for similar applications for pressures up to 400 MPa/58,000 psi. The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismounting fluids are recommended for use with the THAP 400E.
Attributes
Air consumption
200 l/min
Air pressure
3 bar
Betriebstemperaturbereich
0-45 °C
Colour
blue, metallic grey
Druckverhältnis
1:667
Gehäusewerkstoff
Aluminium, alloyed tool steel
Inhalt
Air driven pump 400 MPa;2x Low pressure hoses with couplings (1.5 m);Air hose coupling(f);Mounting fluid (1 ltr);Instructions for use;Carrying case
Maximaldruck
400 Mpa
Maximum pressure
4000 bar
Pressure gauge
Optional
Total weight
21.5
Volumen pro Hub
0.64 ml
Weight
13 kg
Ölauslassgewinde
G 3/4
Ölviskosität max.
1,500 mm²/s
