Ganter

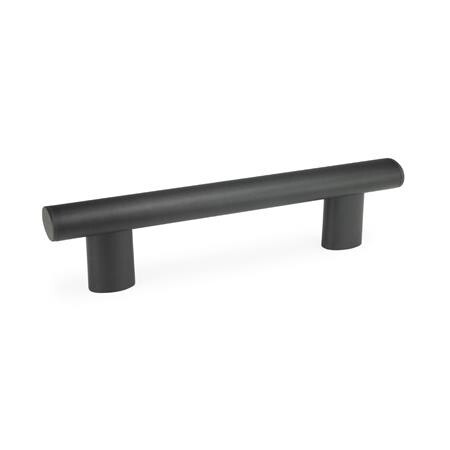

Oval tube handle, straight, black

GN 366-36-M6-200-SW Feet and lid black
AL - Aluminium
Item-no.: 1201366Supplier number: 366-36-M6-200-SWcustoms tariff number: 83024900EAN: 4045525589353
Quantity: ​​ 1 PiecePackable​
Item available in 36 variants:
Short-term Sourcing
Description
Characteristic for the design of the GN 366 oval handles: Tube and handle leg are made in the same elliptical profile.

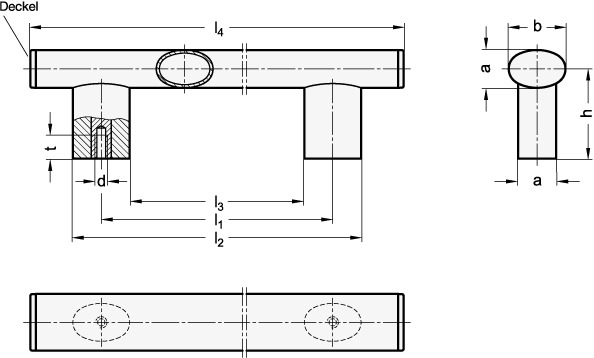

Attributes
A
24
Handle diameter b
36
L2
236
Length l1
200
Material
AL - Aluminium
RoHS
Ja
Screw thread d
M 6
Surface
SW - black, RAL 9005, textured matt
Weight
0.345 kg
h
57
l3
164
l4
290
t min.
15
tmin.
15
