SKF

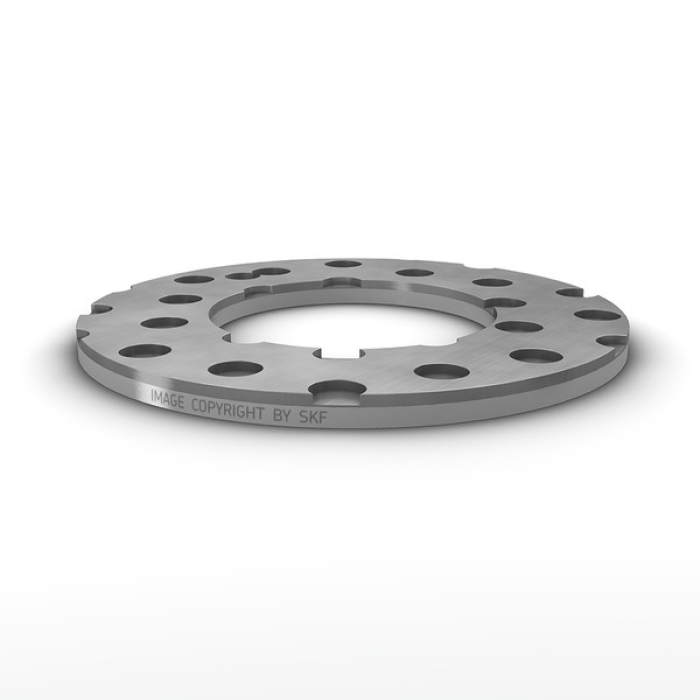

POM composite thrust washer

PCMW 223801.5 M SKF
POM-Verbundwerkstoff
Item-no.: 1303958Supplier number: PCMW 223801.5 Mcustoms tariff number: 84833080EAN: 7316571378862

PU (Packaging): 10 PieceQuantity: ​​ 10 PiecePackable
SKF-Logo
Short-term Sourcing

Description
SKF POM composite thrust washers are suitable for rotating and oscillating movements, and can accommodate heavy axial loads. They have as standard a hole to take a pin or screw to prevent the washers from rotating on their seat. After an initial grease fill, they are optimized for minimal maintenance under tough operating conditions. Pockets in the sliding surface serve as grease reservoirs. Relubrication can extend bearing service life considerably.
Attributes
Borehole diameter
22 mm
Dynamische Tragzahl
90 kN
Höhe
1.5 mm
Material
POM-Verbundwerkstoff
Outer diameter
38 mm
Statische Tragzahl
186 kN
Thickness
1,5 mm
