PTFE composite socket
PCM 130135100 E lead-free, SKFPTFE-Verbundwerkstoff
Item-no.: 1305773Supplier number: PCM 130135100 Ecustoms tariff number: 84833080EAN: 7316572201824
Quantity:
1 Piece
=
1 PackagingPackable
Price and stock visible after login
Description

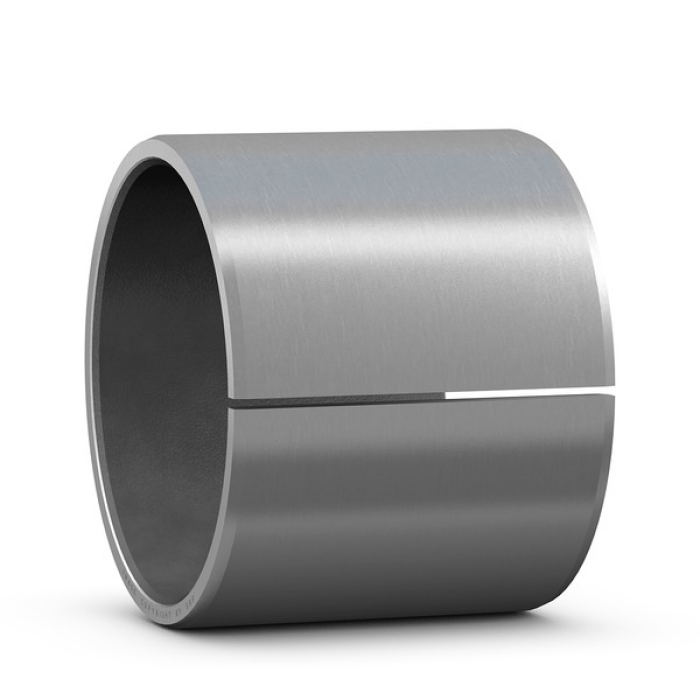

SKF PTFE composite straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. Despite their thin-walled design, they can accommodate heavy loads. They also provide good heat dissipation, therefore enabling relatively high sliding velocities.
Attributes
Borehole diameter
130 mm
Dynamische Tragzahl
1020 kN
Material
PTFE-Verbundwerkstoff
Outer diameter
135 mm
Statische Tragzahl
3200 kN
Width
100 mm
