Panel saw GCM 80 SJ
Bosch 0.601.B19.001Item-no.: 1577136Supplier number: 0601B19001customs tariff number: 84659120EAN: 3165140803731
Quantity:
1 PiecePackable
Price and stock visible after login
Description

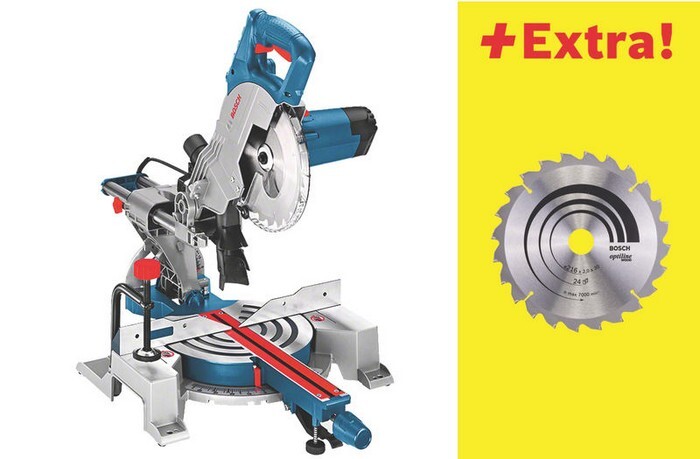

Sliding Mitre Saw GCM 80 SJ, This lightweight and compact mitre saw is a reliable performer that is ready for any popular application, anywhere. It features a 270 mm horizontal cutting capacity for good results in basic jobs. It´s clear. Light, and compact design offers mobility and ensures convenient transportation as well as intuitive operation. This mitre saw is intended for cross, mitre, bevel, and groove cuts in wood, timber beams, and wood composites as well as board materials and floor panels. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands. The product also includes features such as soft start. 2 x circular saw blade, Optiline Wood, 216 x 30 x 2.8 mm, 24 (2 608 640 431)
Attributes
Befestigungszwinge
Ja
Cutting capacity 0°
70 x 270 mm
Cutting capacity 45° inclination
45 x 270 mm
Cutting capacity 45° mitre
70 x 190 mm
Cutting capacity at 0°, height
70 mm
Cutting capacity at 0°, width
270 mm
Cutting capacity at 45° inclination, height
45 mm
Cutting capacity at 45° inclination, width
270 mm
Cutting capacity at 45° mitre, height
70 mm
Cutting capacity at 45° mitre, width
190 mm
Idle speed
5500 min-1
Idle speed, from
5500 min-1
Inclination adjustment
45 ° L
Inclination adjustment, left
45 °
Inclination adjustment, right
0 °
Measurement uncertainty k (sawing wood)
3.0 m/s²
Mitre adjustment
47 ° L / 47 ° R
Mitre adjustment, left
47 °
Mitre adjustment, right
47 °
Nominal input power
1400 W
Packaging dimensions (width x length x height)
476 x 817 x 451 mm
Saw blade bore diameter
30 mm
Saw blade diameter
216 mm
Tool dimensions (length)
780 mm
Tool dimensions (width x length x height)
460 x780 x630 mm
Vibration emission value ah [Sawing wood]
1.5 m/s²
Weight
14.1 kg

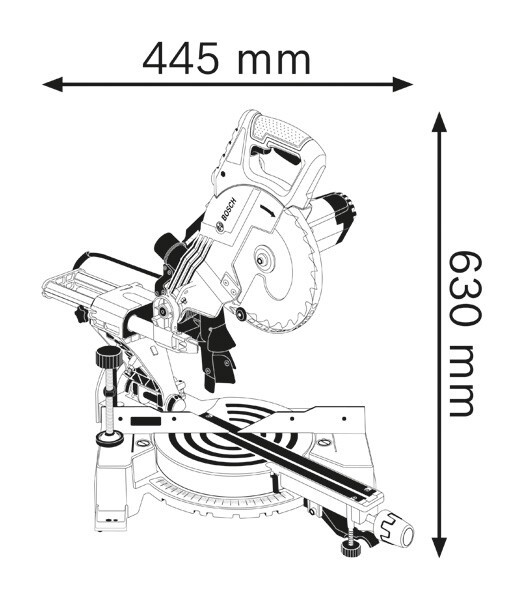

Werkzeugabmessungen (Breite)
445 mm
Werkzeugabmessungen (Höhe)
630 mm
