Fitting piece for machine bearing

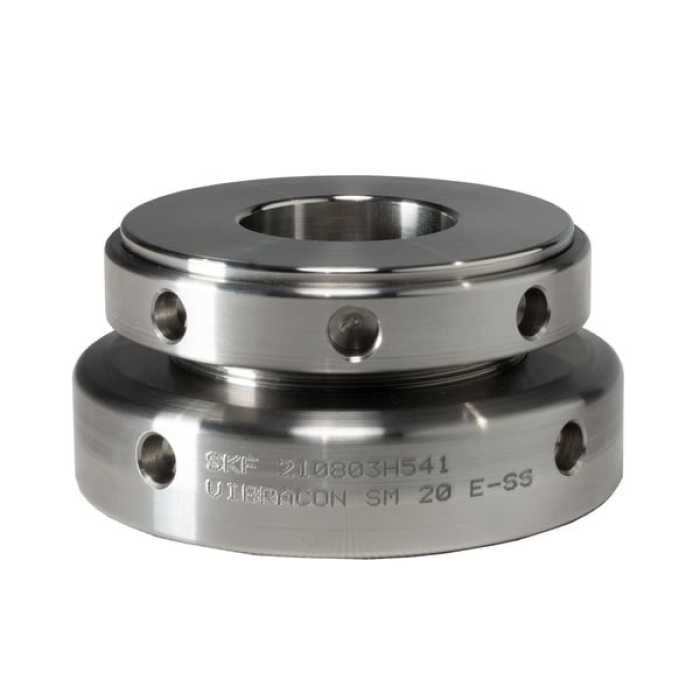

SM 20 E-SS SKF Vibracon MaProEdelstahl
Item-no.: 1526886Supplier number: SM 20 E-SScustoms tariff number: 84879059EAN: 7316581282593
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Stainless steel chocks (E-SS) are used in the most demanding environments where carbon steel surface-treated chocks will not suffice. Mating surfaces are treated with additives to prevent parts from seizing when adjusted. They are suitable but not limited to be used in industries such as oil & gas or offshore.
Attributes
Anzugsdrehmoment für max. Schraubengröße
730 Nm
Anzugsdrehmoment für min. Schraubengröße
420 Nm
Colour
grey-metallic
Durchmesser Schraubbohrung
27 mm
Maschinenlast
35 kN
Material
Edelstahl
Material
Stainless steel
Max. Höhe
54 mm
Maximale Schraubengröße
M24
Mimimale Schraubengröße
M20
Min. Höhe
40 mm
Nominal height
45 mm
Outer diameter
100 mm
Pitch
1.5 mm
Probebelastung
200 kN
Reduzierte Mindesthöhe
30 mm
Schlüssellochdurchmesser
8 mm
Weight
1,83 kg
