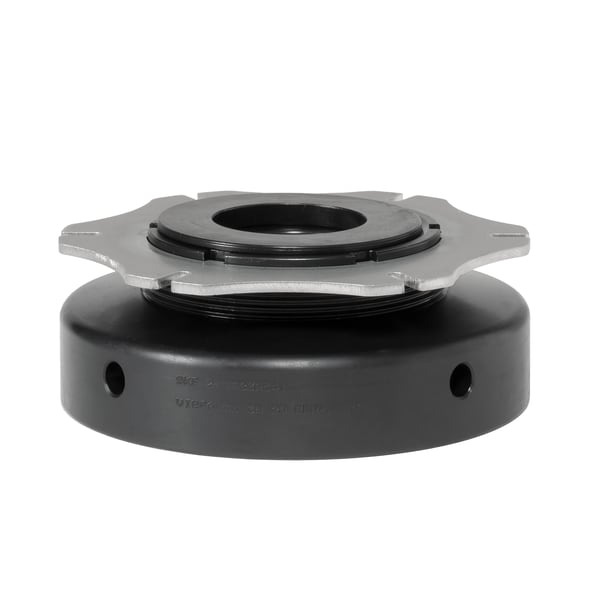

Fitting piece for machine bearing
SM 20 ELP-ASTR SKF Vibracon MaProOberflächenbehandelter legierter Stahl
Item-no.: 1526885Supplier number: SM 20 ELP-ASTRcustoms tariff number: 84879059EAN: 7316581282579
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Low profile chocks (ELP-ASTR) are surface treated alloy steel low profile chocks. They are aimed at applications with limited available chocking heights. Each part is individually surface treated, which gives the chocks a consistent quality and extended performance against corrosion. They can be fitted easily which shorten the installation time.
Attributes
Anzugsdrehmoment für max. Schraubengröße
730 Nm
Anzugsdrehmoment für min. Schraubengröße
420 Nm
Colour
black-metallic

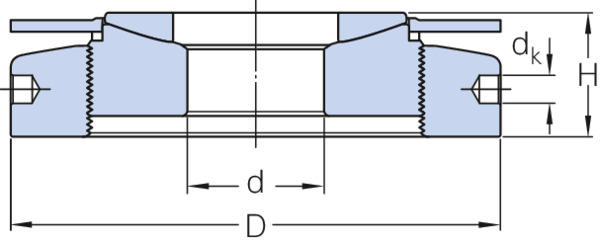

Durchmesser Schraubbohrung
27 mm
Maschinenlast
35 kN
Material
Oberflächenbehandelter legierter Stahl
Material
Surface-treated alloy steel
Max. Höhe
37 mm
Maximale Schraubengröße
M24
Mimimale Schraubengröße
M20
Min. Höhe
25 mm
Nominal height
30 mm
Outer diameter
100 mm
Pitch
1.5 mm
Probebelastung
200 kN
Reduzierte Mindesthöhe
17 mm
Schlüssellochdurchmesser
6 mm
Surface
Nitrocarburised
Weight
1,20 kg
