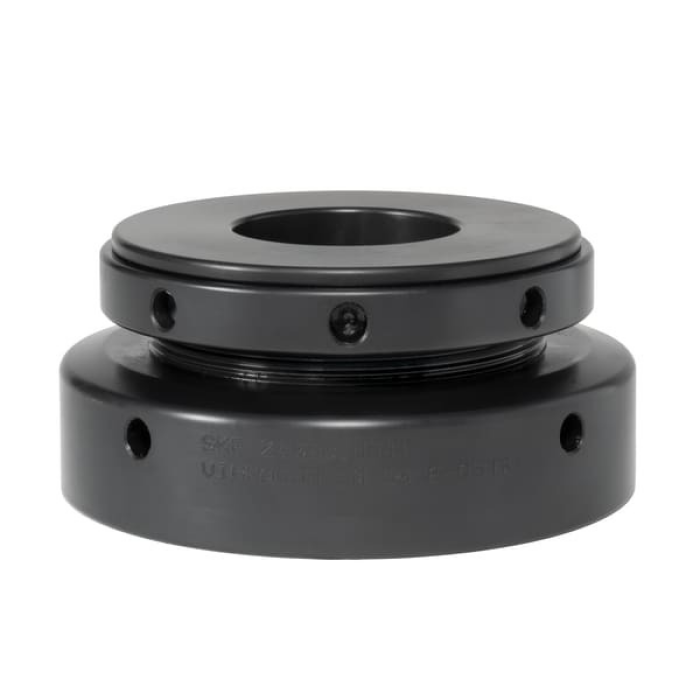

Fitting piece for machine bearing
SM 30 E-CSTR SKF Vibracon MaProOberflächenbehandelter Kohlenstoffstahl
Item-no.: 1526892Supplier number: SM 30 E-CSTRcustoms tariff number: 84879059EAN: 7316581282654
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Surface treated chocks (E-CSTR) are often installed in demanding environments, including humid and salty climates – where enhanced corrosion protection is recommended. Each part is individually surface treated, which helps to give the chocks a consistent quality and extended performance against corrosion.
Attributes
Anzugsdrehmoment für max. Schraubengröße
2570 Nm
Anzugsdrehmoment für min. Schraubengröße
1465 Nm
Colour
black-metallic
Durchmesser Schraubbohrung
39 mm
Maschinenlast
90 kN
Material
Oberflächenbehandelter Kohlenstoffstahl
Material
Surface-treated carbon steel
Max. Höhe
65 mm
Maximale Schraubengröße
M36
Mimimale Schraubengröße
M30
Min. Höhe
50 mm
Nominal height
56 mm
Outer diameter
140 mm
Pitch
2 mm
Probebelastung
475 kN
Reduzierte Mindesthöhe
40 mm
Schlüssellochdurchmesser
8 mm
Surface
Nitrocarburised
Weight
4,56 kg
