Fitting piece for machine bearing
SM 30 ELP-ASTR SKF Vibracon MaProOberflächenbehandelter legierter Stahl
Item-no.: 1526893Supplier number: SM 30 ELP-ASTRcustoms tariff number: 84879059EAN: 7316581282661
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Low profile chocks (ELP-ASTR) are surface treated alloy steel low profile chocks. They are aimed at applications with limited available chocking heights. Each part is individually surface treated, which gives the chocks a consistent quality and extended performance against corrosion. They can be fitted easily which shorten the installation time.
Attributes
Anzugsdrehmoment für max. Schraubengröße
2570 Nm
Anzugsdrehmoment für min. Schraubengröße
1465 Nm
Colour
black-metallic

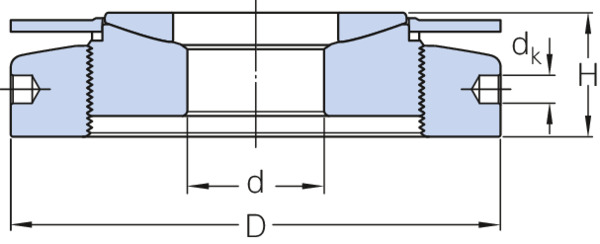

Durchmesser Schraubbohrung
39 mm
Maschinenlast
90 kN
Material
Oberflächenbehandelter legierter Stahl
Material
Surface-treated alloy steel
Max. Höhe
37 mm
Maximale Schraubengröße
M36
Mimimale Schraubengröße
M30
Min. Höhe
25 mm
Nominal height
30 mm
Outer diameter
140 mm
Pitch
2 mm
Probebelastung
475 kN
Reduzierte Mindesthöhe
17 mm
Schlüssellochdurchmesser
6 mm
Surface
Nitrocarburised
Weight
2,40 kg
