Fitting piece for machine bearing
SM 42 ELP-ASTR SKF Vibracon MaProOberflächenbehandelter legierter Stahl
Item-no.: 1526901Supplier number: SM 42 ELP-ASTRcustoms tariff number: 84879059EAN: 7316581282746
Quantity:
1 PiecePackable
Price and stock visible after login
Description

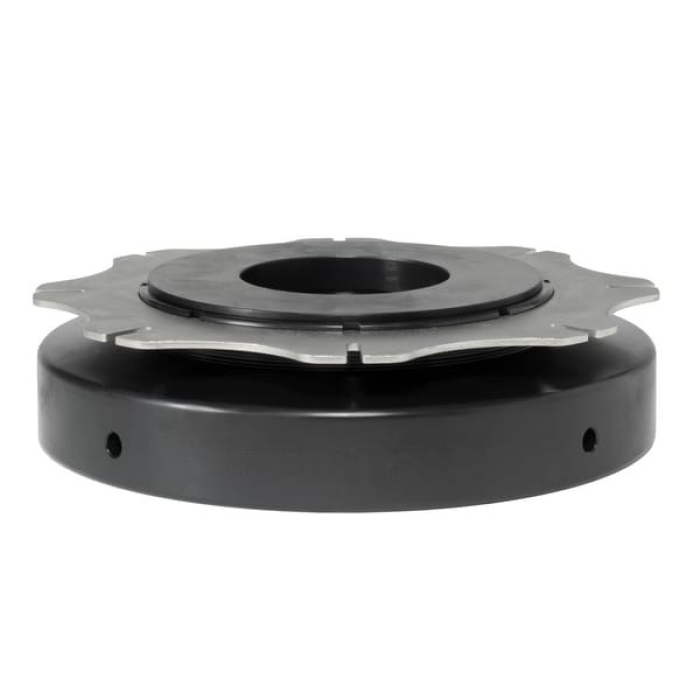

Low profile chocks (ELP-ASTR) are surface treated alloy steel low profile chocks. They are aimed at applications with limited available chocking heights. Each part is individually surface treated, which gives the chocks a consistent quality and extended performance against corrosion. They can be fitted easily which shorten the installation time.
Attributes
Anzugsdrehmoment für max. Schraubengröße
6210 Nm
Anzugsdrehmoment für min. Schraubengröße
4100 Nm
Colour
black-metallic
Durchmesser Schraubbohrung
52 mm
Maschinenlast
160 kN
Material
Oberflächenbehandelter legierter Stahl
Material
Surface-treated alloy steel
Max. Höhe
47 mm
Maximale Schraubengröße
M48
Mimimale Schraubengröße
M42
Min. Höhe
35 mm
Nominal height
40 mm
Outer diameter
190 mm
Pitch
2 mm
Probebelastung
850 kN
Reduzierte Mindesthöhe
27 mm
Schlüssellochdurchmesser
6 mm
Surface
Nitrocarburised
Weight
6,20 kg
