Description

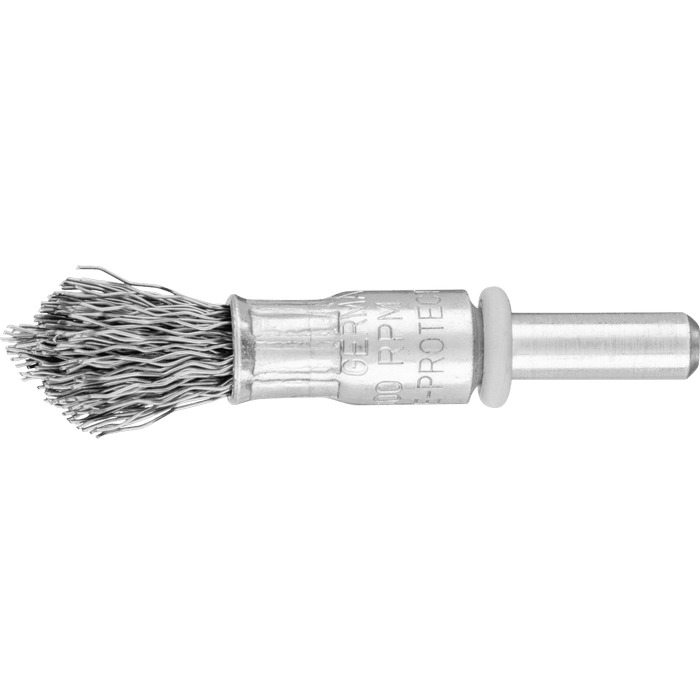

Suitable for light brushing such as deburring, cleaning and derusting. Tapered tip for superb accuracy. Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire withstands temperatures up to 300 °C.
Attributes
Bristle material
Steel wire (ST)
Holder system
Shank
Length, total
60 mm
Length, trim
20 mm
Max. RPM
20000 RPM
RPM, max.
20000 RPM
RPM, opt. from
10000 RPM
RPM, opt. to
15000 RPM
Series
byly_PBUS_SG_4321
Ø Cup
10 mm
Ø External metric
10 mm
Ø Shaft metric
6 mm
Ø Trimming material
0.3 mm
