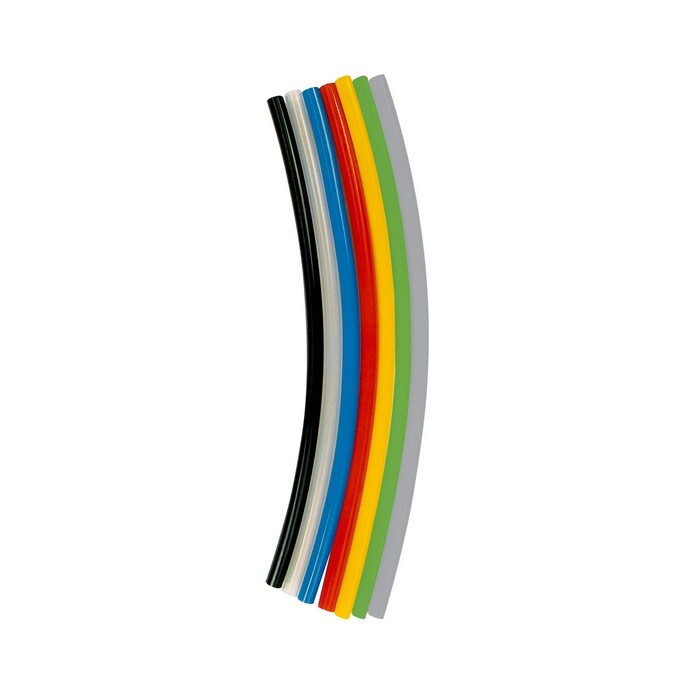

Polyethylene hose
Hose Ø 12x1 mm, yellowItem-no.: 1462982Supplier number: 259.23 G-V2EAN: 4047322687768
PU (Roll): 25 MeterQuantity:
25 MeterPackable
Item available in 56 variants:
Price and stock visible after login
Description
Polyethylene hose (LD-PE), Temperature -40 °C to 60 °C, Hose ø 12x1 mm, PN at 23 °C max. 5 bar, yellow, Roll of 25 m. Low-priced, calibrated hose for use with screw fittings. With its soft and flexible character, combined with relatively high strengths and good resistance to stress cracking, this hose is ideal for use in the following types of application: - Flexible pneumatic lines in the low-pressure range, providing no special resistance to greases, oils or other hydrocarbons is required. - Compressed air control lines. - Vacuum lines (suitable for vacuum up to 10 x 8 mm). - Supply lines of all kinds.
Attributes
Colour
yellow
Hose-Ø inside
10 mm
Hose-Ø outer
12 mm
Material
Polyethylene (LD-PE)
Max. operating pressure at 23 °C
5 bar
Riegler article number
194266
Roll length
25 m
Temperature range max.
60 °C
Temperature range min.
-10 °C
Wall thickness
1 mm
