Description

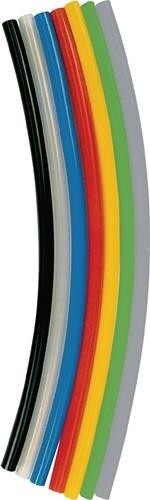

Polyurethane hose (PUR), Temperature -20 °C to 60 °C, Hose ø 8x1.25 mm, PN at 23°C max 10 bar, blue, Roll of 25 m. Polyurethane hoses are renowned for their extreme flexibility and correspondingly narrow bending radius across a wide temperature range. They are more flexible even than LD-PE hoses and exhibit good abrasion resistance, very good low-temperature flexibility, only minimal permanent deformation when subjected to long-term stresses as well as good resistance to the majority of oils, greases, aliphatic hydrocarbons and oxygen. Main applications: - Pneumatic and hydraulic (miniature hydraulics) lines - Mechanical engineering - Engine construction - Instrumentation and control - Ideal for use with unions, as externally calibrated
Attributes
Colour
blue
Exterior-Ø
8 mm
Inner core
PUR
Internal-Ø
5,5 mm
Length (battery)
25 m
Maximum temperature
60 °C
Minimum temperature
-20 °C
Operating pressure
10 bar
Resistance outside
Oil resistant
Wall thickness
1,25 mm
