Polyurethanschlauch
Schlauch-Ø 8 x 1,25 mm, natu RO25Item-no.: 1734982Supplier number: PURN8X1,25-25FDAEAN: 4047322782210
PU (Roll): 25 MeterQuantity:
25 MeterPackable
Price and stock visible after login
Description

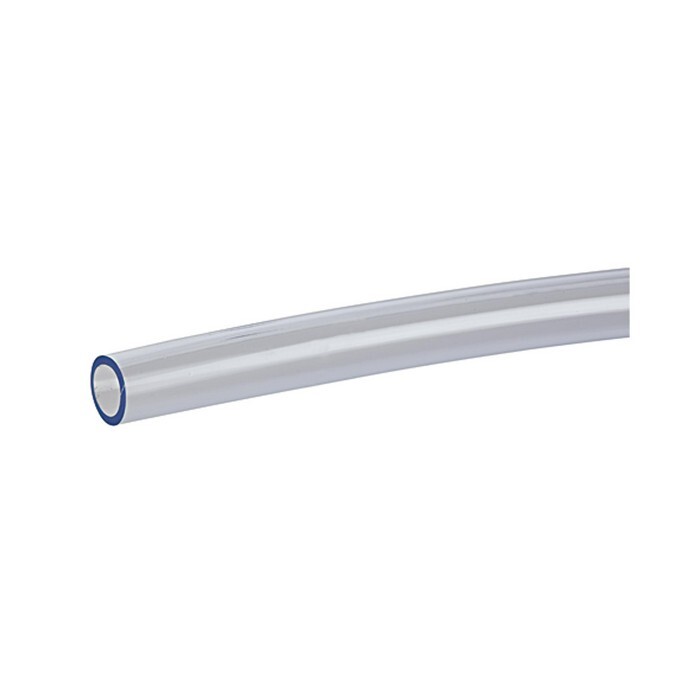

Polyurethane hose, hose Ø8x1.25 mm, natural, T = -40°C to 85°C, PN at 23°C max.8 bar, approval acc.to EU10/2011 (FDA),roll of 25 m. Thanks to its high abrasion resistance, flexibility and temperature resistance, the polyurethane hose is particularly suitable for use in food technology, food machine construction and the production of pharmaceuticals. It is ideal for use in conjunction with our "NonPlusUltra" series stainless steel push-in fittings.
Attributes
Colour
nature
Hose-Ø inside
5,5 mm
Hose-Ø outer
8 mm
Max. operating pressure at 23 °C
8 bar
Roll length
25 m
Shore hardness
98A
Temperature range max.
85 °C
Temperature range min.
-40 °C
Wall thickness
1,25 mm
