Präzisions-Axial-Schrägkugellager
BTW 75 CTN9/SP SKFItem-no.: 1304100Supplier number: BTW 75 CTN9/SPcustoms tariff number: 84821090EAN: 7316574673995
Quantity:
1 Piece
=
1 PackagingPackable
Price and stock visible after login
Description

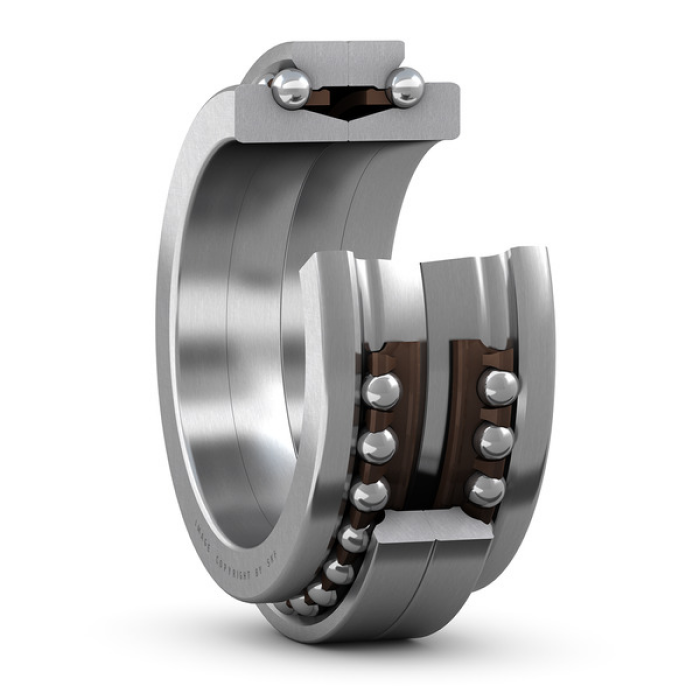

These double direction angular contact thrust ball bearings consist of two single row angular contact thrust ball bearings, arranged back-to-back. They accommodate high axial loads in both directions and provide a high degree of system rigidity.
Attributes
Borehole diameter
75 mm
Coat
Ohne
Dynamische Tragzahl
39.7 kN
Höhe
48 mm
Käfig
Nichtmetallisch
Material, bearing
Wälzlagerstahl
Outer diameter
115 mm
Schmierstoff
Kein(e/r)
Seal
Ohne
Statische Tragzahl
116 kN
Toleranzklasse
SP
