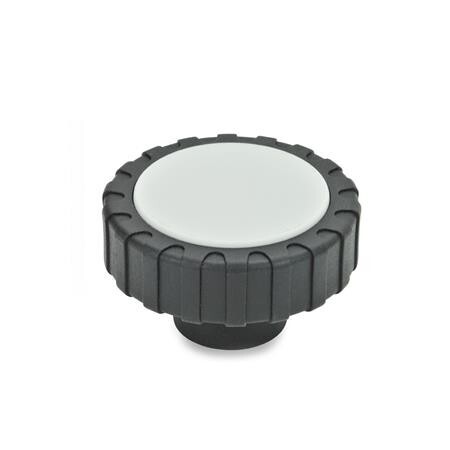

Knurled handle
GN 7336-34-M6-STST - Steel
Item-no.: 1212384Supplier number: 7336-34-M6-STEAN: 4045525607095
Quantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description
Knurled knobs GN 7336 are suitable for a diverse range of applications. Thanks to the use of DIN nuts as threaded insert, it is possible to realize other thread lengths, left-hand and fine thread as well as variants of stainless steel A4 even at smaller part volumes. The threaded inserts are fastened in the housing with a tight fit via ultrasound welding.
Attributes
Handle diameter d1
34
Length (battery)
19
Material
ST - Steel
Material1
PA - plastic, polyamide
RoHS
Ja
Screw thread d2
M 6
Weight
0.005 kg
d3
16
h1
21
h2
10.5
s1
5
