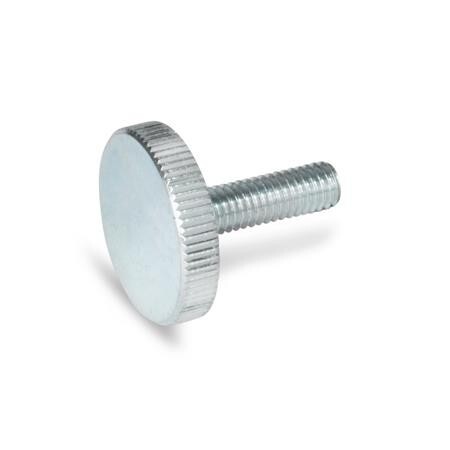

Knurled screw, flat
DIN 653-M10-25-ZB galvanisedST - Steel
Item-no.: 1398456Supplier number: DIN 653-M10-25-ZBEAN: 4045525532977
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 11 variants:
Price and stock visible after login
Description
Knurled screws DIN 653 are turned entirely from a single piece. The thread of the screw generally extends up to the head and ends in a runout without recess as per the DIN designation A. They are suitable for universal use and can be quickly tightened and loosened without tools.
Attributes
Material
ST - Steel
RoHS
Ja
Screw thread d1
M 10
Surface
ZB - galvanised, blue passivated
Thread length l
25
Weight
0.074 kg
d2
36
k
8
